description

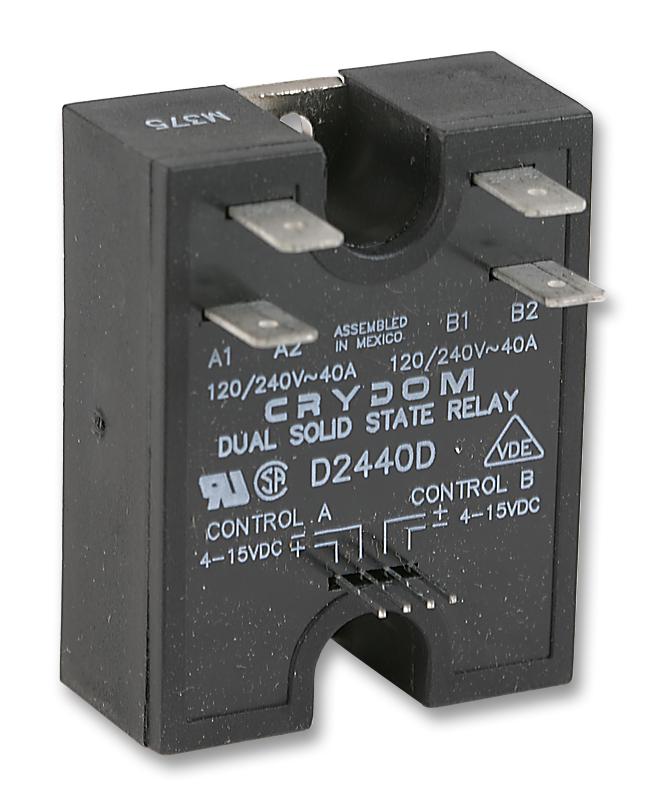

SENSATA/CRYDOM - D2440D - Solid State Relay, DPST-NO, 40 A, 280 VAC, Panel Mount, Quick Connect, Zero Crossing
- Contact Configuration: DPST-NO
- Load Current: 40A
- Operating Voltage Max: 280VAC
- Relay Mounting: Panel
- Relay Terminals: Quick Connect
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24VAC
- Control Voltage Min: 4VDC
- Control Voltage Max: 15VDC
- Product Range: 1 Series
- SVHC: No SVHC (12-Jan-2017)
- Blocking voltage: 600V
- Control Voltage DC Max: 15VDC
- Control Voltage DC Min: 4VDC
- Control Voltage Range: 4V DC to 15V DC
- Control Voltage Type: DC
- External Depth: 57.15mm
- External Diameter: 4.5mm
- External Length / Height: 21mm
- External Width: 44.5mm
- Fixing Centres: 47.5mm
- Isolation Voltage: 4kV
- Load Current Min: 0.15A
- Load Current RMS Max: 40A
- Must Release Voltage: 1V
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Operating Voltage Range: 24Vrms to 280Vrms
- Output Type: Thyristor
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 24V
- Rate of Voltage Change dv / dt: 200V/µs
- Resistance: 310ohm
- Single Cycle Surge Current: 500A
- Surge Current: 500A
