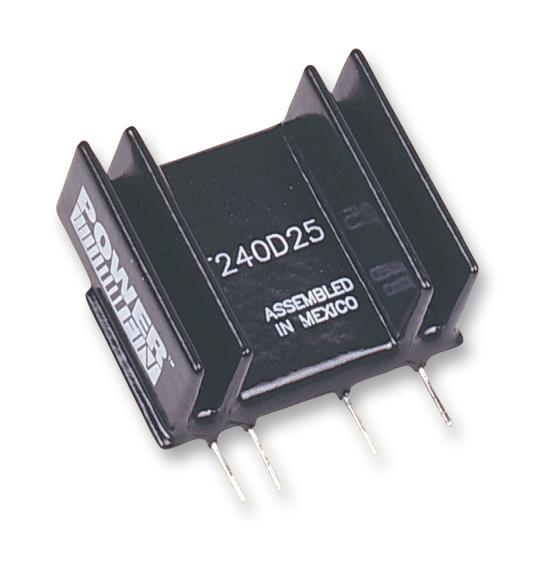

SENSATA/CRYDOM - PF240D25R - Solid State Relay, PowerFin / PF Series, SIP, SPST-NO, 25 A, 280 Vrms, PCB, Through Hole
- Contact Configuration: SPST-NO
- Load Current: 25A
- Operating Voltage Max: 280Vrms
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: Random Turn On
- Operating Voltage Min: 12Vrms
- Control Voltage Min: 3VDC
- Control Voltage Max: 15VDC
- Product Range: PowerFin / PF Series
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CE, VDE
- Approval Category: UL Recognised
- Blocking voltage: 600V
- Control Current Typ: 15mA
- Control Voltage DC Max: 15VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 15V DC
- Control Voltage Type: DC
- External Depth: 22.8mm
- External Length / Height: 34.3mm
- External Width: 38.1mm
- I2t: 260s
- Input Impedance: 300ohm
- Input Voltage: 3V DC to 15V DC
- Insulation Resistance: 1000Mohm
- Isolation Voltage: 4kV
- Leakage Current: 0.1mA
- Load Current Max: 10A
- Load Current Min: 0.06A
- Load Current RMS Max: 25A
- Load Voltage Range: 12V AC to 280V AC
- No. of Pins: 4Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Output Type: SCR
