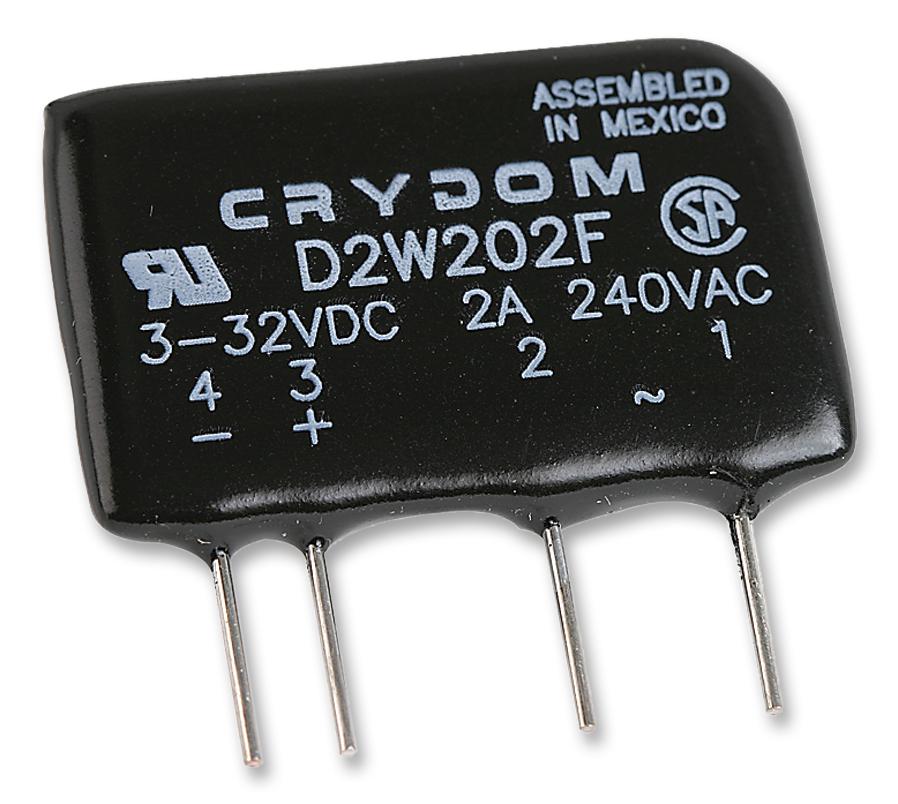

SENSATA/CRYDOM - D2W202F - Solid State Relay, D2W Series, SIP, SPST-NO, 2 A, 280 VAC, PCB, Through Hole, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 2A
- Operating Voltage Max: 280VAC
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24VAC
- Control Voltage Min: 3VDC
- Control Voltage Max: 32VDC
- Product Range: D2W Series
- SVHC: No SVHC (07-Jul-2017)
- Blocking voltage: 600V
- Control Current @ 5VDC: 3mA
- Control Voltage DC Max: 28VDC
- Control Voltage DC Min: 20VDC
- Control Voltage Range: 20V DC to 28V DC
- Control Voltage Type: DC
- External Depth: 12mm
- External Length / Height: 30mm
- External Width: 43mm
- Input Voltage: 3V DC to 32V DC
- Isolation Voltage: 4kV
- Load Current Max: 2A
- Load Current Min: 60mA
- Load Current RMS Max: 2A
- Load Voltage Range: 24Vrms to 280Vrms
- Operating Voltage Range: 0V DC to 100V DC
- Output Type: Triac
- RMS Load Current Min: 0.06A
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 24V
- Rate of Voltage Change dv / dt: 200V/s
- Surge Current: 28A
