description

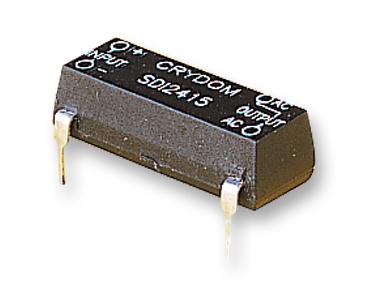

SENSATA/CRYDOM - SDI2415 - Solid State Relay, SDI Series, DIP, SPST-NO, 1.5 A, 280 Vrms, PCB, Through Hole, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 1.5A
- Operating Voltage Max: 280Vrms
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: Zero Crossing
- Operating Voltage Min: 12Vrms
- Control Voltage Min: -
- Control Voltage Max: -
- Product Range: SDI Series
- SVHC: No SVHC (12-Jan-2017)
- Control Current Max: 50mA
- Control Current Typ: 10mA
- Control Voltage DC Max: 10VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 10V DC
- External Depth: 4.8mm
- External Length / Height: 21.6mm
- External Width: 6.7mm
- Isolation Voltage: 3.75kV
- Load Current Max: 1.5A
- Load Current Min: 0.025A
- Load Current RMS Max: 1.5A
- Load Voltage Range: 12V AC to 280V AC
- Operating Voltage Range: 12Vrms to 280Vrms
- Output Type: Thyristor
- RMS Load Current Min: 0.025A
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 12V
- Rate of Voltage Change dv / dt: 500V/µs
- Surge Current: 30A
