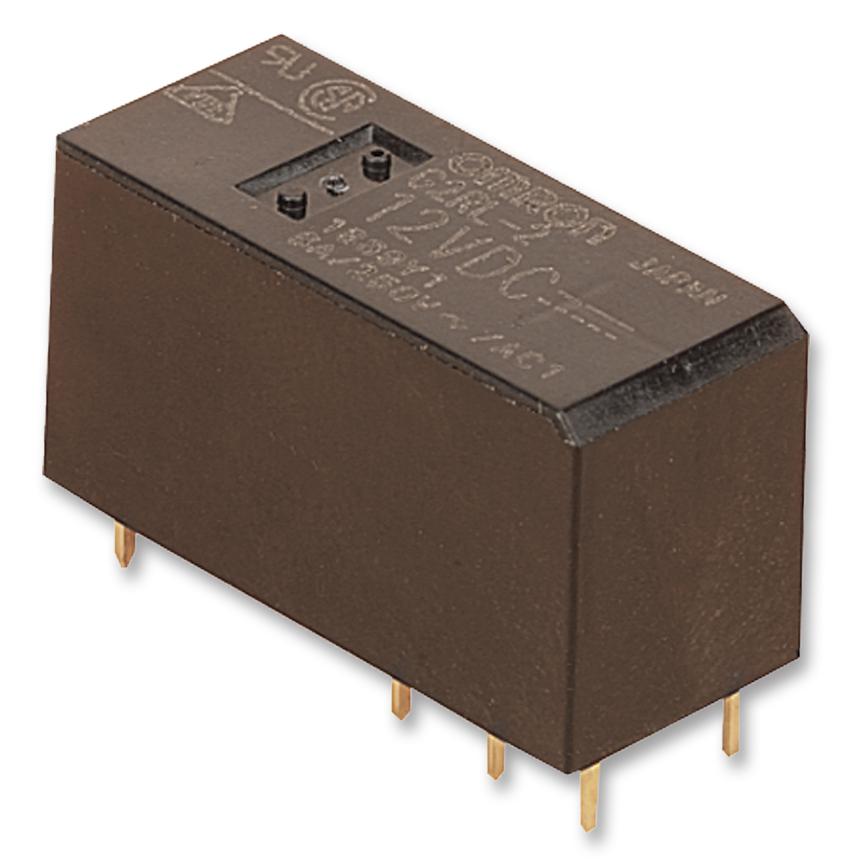

G2RL-14 DC12 Relay, SPDT, 240Vac, 24Vdc, 3a Omron

OMRONUGS :G2RL-14 DC12 Code de commande:2065764

Prix:
Prix ​​promotionnel€5,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (944 unité)

Documents et téléchargements

description

OMRON - G2RL-14 DC12 - General Purpose Relay, G2RL Series, Power, Non Latching, SPDT, 12 VDC, 12 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 12A
  • Product Range: G2RL Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 24VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 360ohm
  • Approvals & Standards: CE, UL, VDE
  • Coil Current: 33.3mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 12A
  • Contact Voltage AC Nom: 440V
  • Contact Voltage DC Nom: 300V
  • External Depth: 29mm
  • External Height: 15.7mm
  • External Width: 12.7mm
  • Nom Operating Power: 400mW
  • Relay Type: Power - General Purpose
