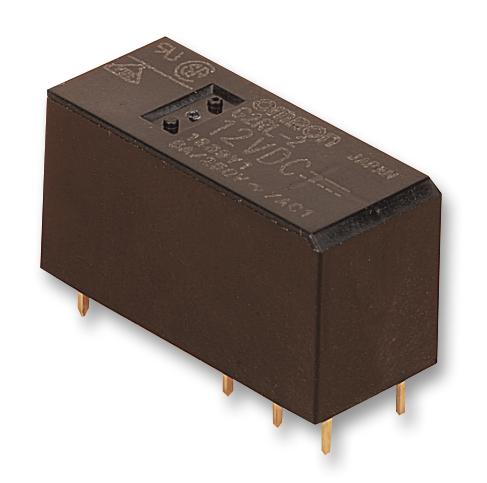

OMRON - G2RL-1 DC24 - Power Relay, SPDT, 24 VDC, 12 A, G2RL, Through Hole, Non Latching
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 12A
- Product Range: G2RL Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 24VDC
- Contact Material: Silver Tin Oxide
- Coil Resistance: 1.44kohm
- Approval Bodies: CSA, UL, VDE
- Approvals & Standards: CE, UL, VDE
- Coil Current: 16.7mA
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 130%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 12A
- Contact Current DC Max: 12A
- Contact Current Max: 12A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 24V
- DC Coil Power: 400mW
- External Depth: 29mm
- External Height: 15.7mm
- External Length / Height: 15.7mm
- External Width: 12.7mm
- Nom Operating Power: 400mW
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 7ms
- Relay Type: Power - General Purpose
- Release Time: 5ms
