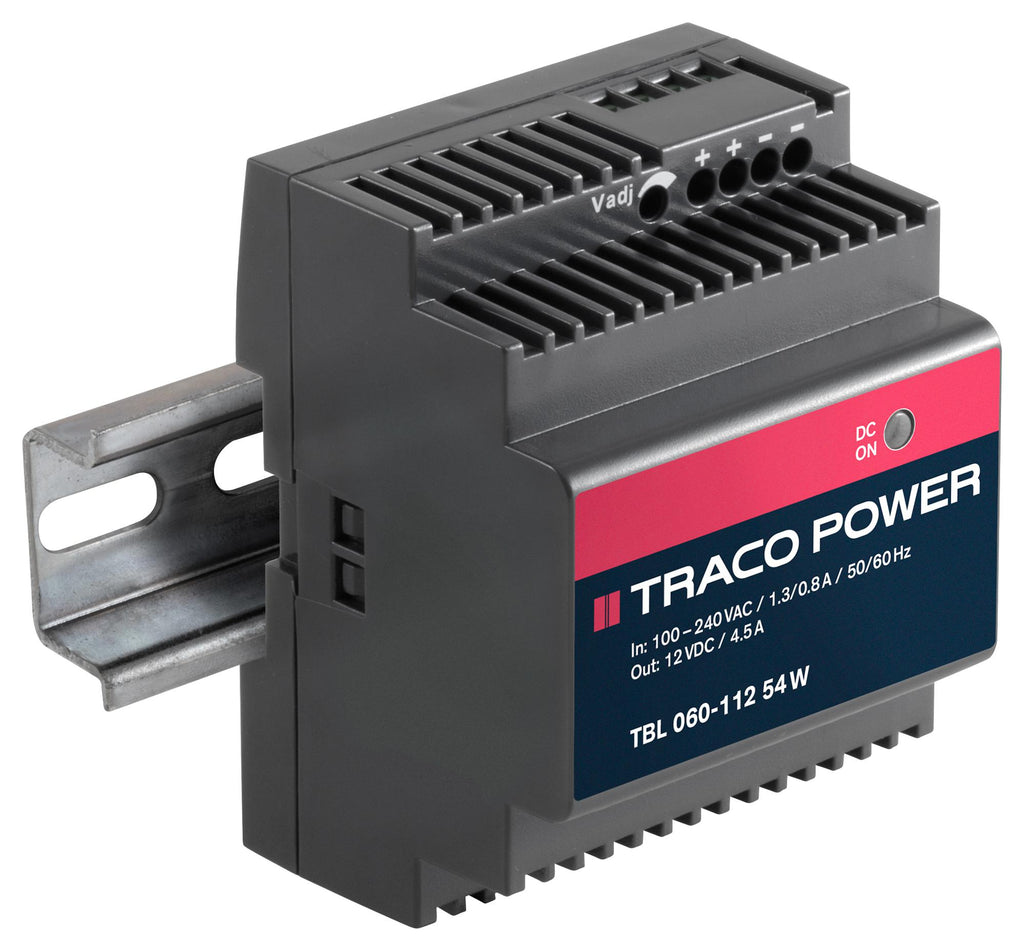

TRACO POWER - TBL 060-112 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 60 W, 12 VDC, 4.5 A
- No. of Outputs: 1 Output
- Output Power Max: 60W
- Output Voltage - Output 1: 12VDC
- Output Current - Output 1: 4.5A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Applications: Industrial
- Approval Bodies: CE, CSA, GS, UL
- Efficiency: 85%
- External Depth: 54.5mm
- External Length / Height: 89.5mm
- External Width: 70mm
- Frequency Max: 63Hz
- Frequency Min: 47Hz
- Height: 89.5mm
- Input Frequency: 50Hz
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 85VAC
- Length: 59.5mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Output Current: 4.5A
- Output Voltage: 12V
- Power Rating: 54W
- Power Supply Type: Switch Mode
- Supply Voltage: 230V
- Supply Voltage Max: 264V
- Supply Voltage Min: 85V
- Width: 70mm
