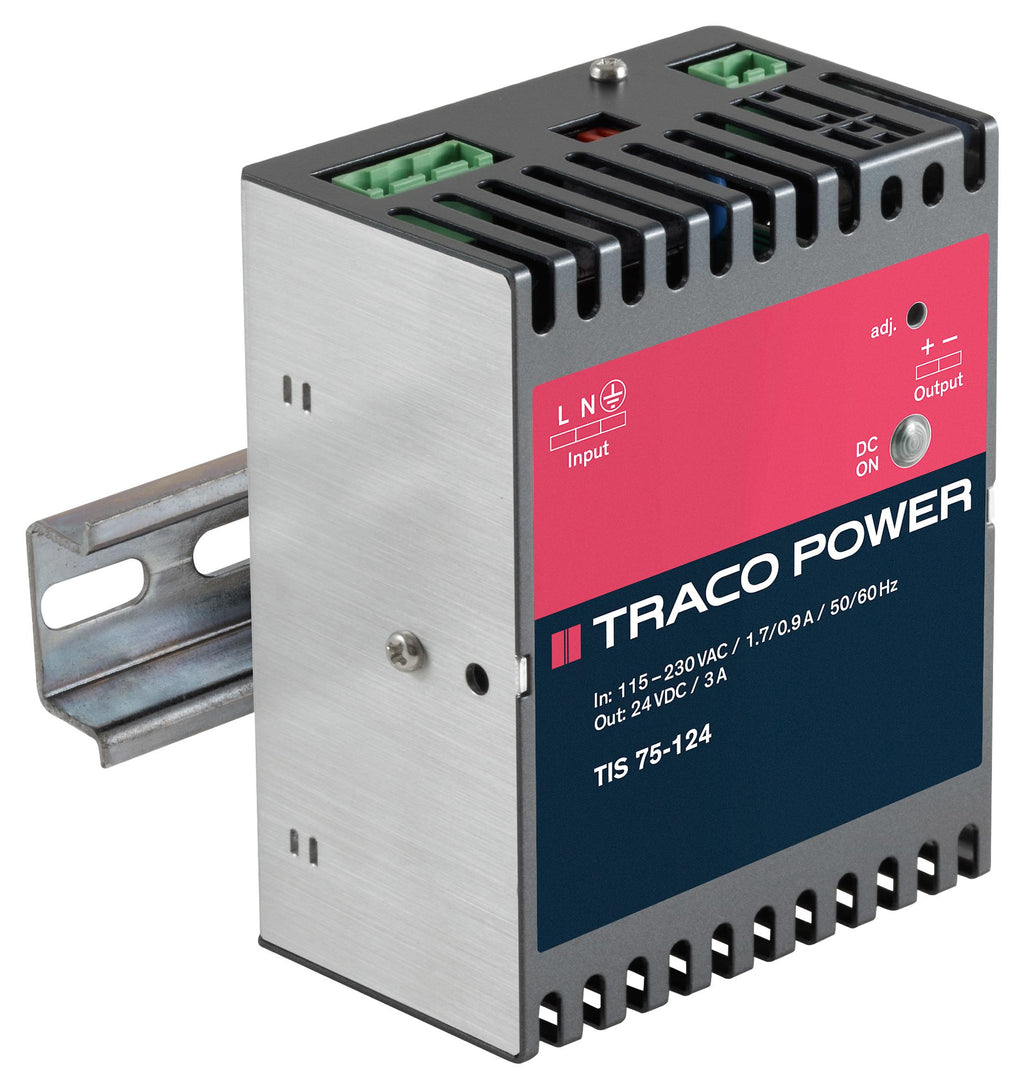

TRACO POWER - TIS 075-124 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 75 W, 24 VDC, 3 A
- No. of Outputs: 1 Output
- Output Power Max: 75W
- Output Voltage - Output 1: 24VDC
- Output Current - Output 1: 3A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 93V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: TIS Series
- SVHC: No SVHC (27-Jun-2018)
- Applications: Industrial
- Approval Bodies: CE, UL
- External Depth: 56.7mm
- External Length / Height: 114.6mm
- External Width: 90mm
- Height: 114.6mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 93VAC
- Length: 56.7mm
- Line Regulation: 0.2%
- Load Regulation: 1%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Output Current: 3A
- Output Power: 75W
- Output Ripple Voltage pk-pk: 50mV
- Output Voltage: 24V
- Power Rating: 75W
- Power Supply Type: Switch Mode
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 230V
