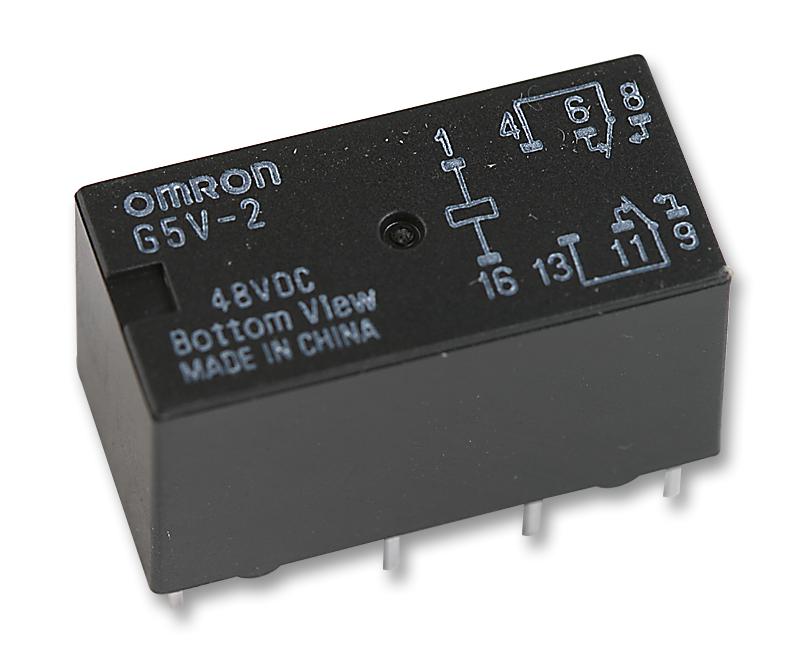

OMRON - G5V-2 4 DC48 - Signal Relay, 48 VDC, DPDT, 2 A, G5V-2, Through Hole, Non Latching
- Coil Voltage: 48VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: G5V-2 Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver
- Coil Resistance: 4kohm
- Approval Bodies: CSA, UL
- Approval Category: FCC Part 68
- Approvals & Standards: CSA, UL
- Coil Current: 12mA
- Coil Operating Lower Percent Limit: 75%
- Coil Operating Upper Percent Limit: 120%
- Coil Power Continuous: 580mW
- Coil Sensitivity: 150mW
- Coil Voltage VDC Nom: 48V
- Contact Current AC Max: 500mA
- Contact Current DC Max: 2A
- Contact Current Max: 2A
- Contact Voltage AC Max: 125V
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 500mW
- Dielectric Strength VDC: 1000V
- External Depth: 10.1mm
- External Height: 11.5mm
- External Length / Height: 11.5mm
- External Width: 20.5mm
- Operating Temperature Max: 65°C
- Operating Temperature Min: -25°C
- Operating Time: 7ms
