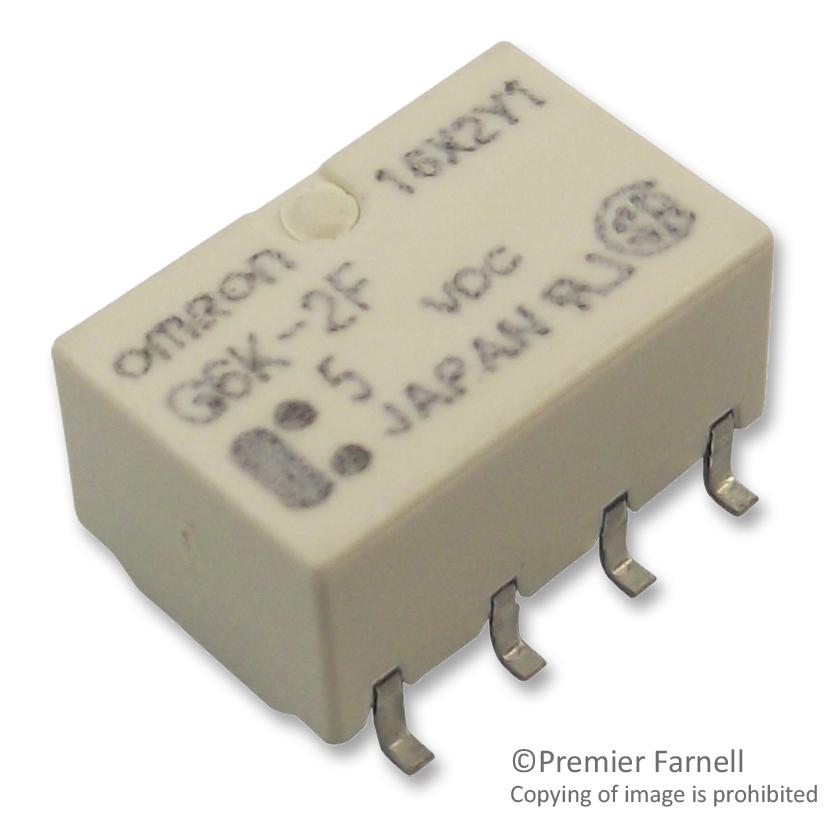

OMRON - G6K-2F DC5 - Signal Relay, 5 VDC, DPDT, 1 A, G6K, Surface Mount, Non Latching
- Coil Voltage: 5VDC
- Contact Configuration: DPDT
- Contact Current: 1A
- Product Range: G6K Series
- Relay Mounting: SMD
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver Gold
- Coil Resistance: 237ohm
- Approvals & Standards: CSA, UL
- Coil Current: 21.1mA
- Coil Power Continuous: 100mW
- Coil Voltage VDC Nom: 5V
- Contact Current AC Max: 0.3A
- Contact Current Max: 1A
- Contact Resistance: 100mohm
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Nom: 30V
- Dielectric Strength VDC: 1500VAC
- External Depth: 6.5mm
- External Height: 5.2mm
- External Width: 10mm
- Insulation Resistance: 1000Mohm
- No. of Mechanical Operations: 50000000
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
