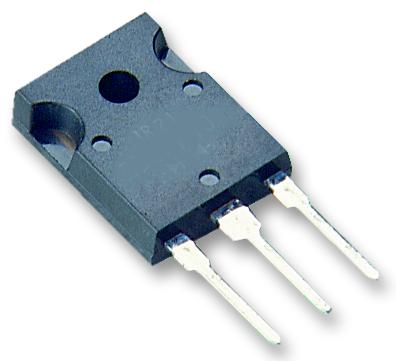

IXYS SEMICONDUCTOR - DSEI120-12A - Fast / Ultrafast Diode, 1.2 kV, 109 A, Single, 1.55 V, 60 ns, 600 A
- Repetitive Reverse Voltage Vrrm Max: 1.2kV
- Forward Current If(AV): 109A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.55V
- Reverse Recovery Time trr Max: 60ns
- Forward Surge Current Ifsm Max: 600A
- Operating Temperature Max: 150°C
- Diode Case Style: TO-247
- No. of Pins: 3 Pin
- Product Range: DSEI1 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Case Temperature Tc @ If: 60°C
- Current If @ Vf: 70A
- Current Ifsm: 540A
- Diode Module Configuration: Single
- Diode Type: Fast Recovery
- Junction Temperature Tj Max: 150°C
- Junction to Case Thermal Resistance A: 0.35°C/W
- No. of Pins: 3Pins
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +150°C
- Pin Configuration: Single
- Reverse Recovery Time trr Typ: 40ns
- Termination Type: Through Hole
- Time on for IFSM: 10ms
