DSEI60-10A Diode, Fast, 65A IXYS Semiconductor

IXYS SEMICONDUCTORUGS :DSEI60-10A Code de commande:9359362

Prix:
Prix ​​promotionnel€11,02

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (90 unité)

Documents et téléchargements

description

IXYS SEMICONDUCTOR - DSEI60-10A - Fast / Ultrafast Diode, 1 kV, 65 A, Single, 2.3 V, 35 ns, 500 A

  • Repetitive Reverse Voltage Vrrm Max: 1kV
  • Forward Current If(AV): 65A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 2.3V
  • Reverse Recovery Time trr Max: 35ns
  • Forward Surge Current Ifsm Max: 500A
  • Operating Temperature Max: 150°C

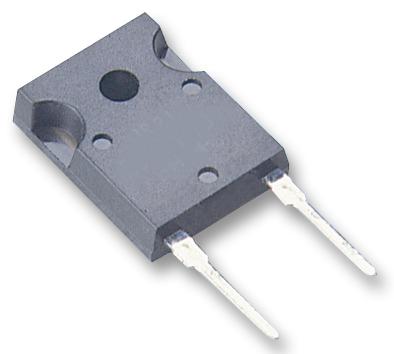

  • Diode Case Style: TO-247AD
  • No. of Pins: 2 Pin
  • Product Range: DSEI6 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (12-Jan-2017)
  • Current Ifsm: 500A
  • Diode Module Configuration: Single
  • Diode Type: Fast Recovery
  • Forward Current If Max: 60A
  • Junction Temperature Tj Max: 150°C
  • No. of Pins: 2Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +150°C
  • Reverse Recovery Time trr Typ: 35ns
