Description

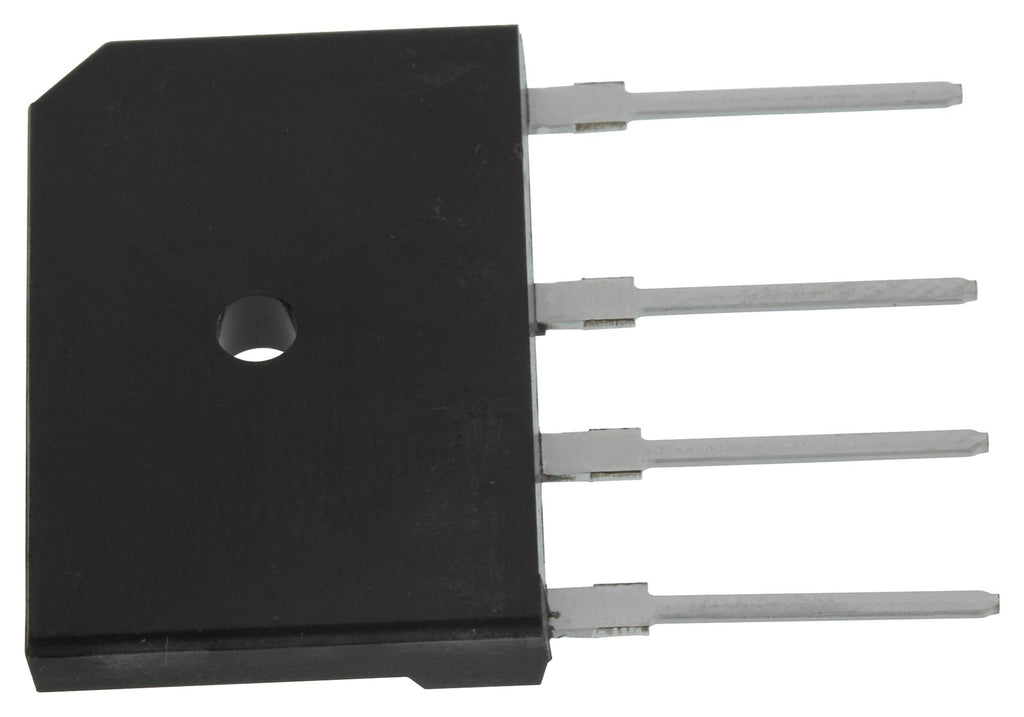

VISHAY - GSIB2580-E3/45 - Bridge Rectifier, Single Phase, 800 V, 25 A, SIP, 4 Pins, 1 V
- No. of Phases: Single Phase
- Repetitive Reverse Voltage Vrrm Max: 800V
- Forward Current If(AV): 25A
- Bridge Rectifier Case Style: SIP
- Forward Voltage VF Max: 1V
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: GSIB2 Series
- SVHC: Lead (15-Jan-2019)
- Body Height Max: 20.3mm
- Diode Configuration: Dual Independent
- Diode Mounting Type: Through Hole
- Diode Type: Bridge Rectifier
- External Depth: 4.6mm
- External Length / Height: 20mm
- External Width: 30mm
- Forward Surge Current Ifsm Max: 350A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Output Current Max: 25A
- RMS Input Voltage: 560V
