Description

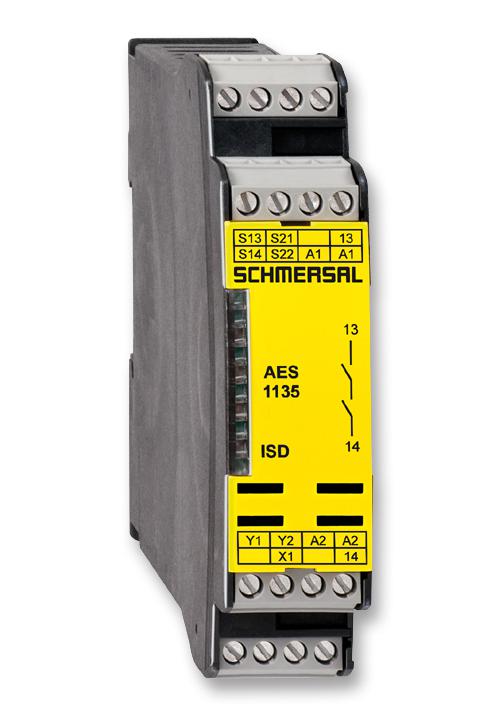

SCHMERSAL - AES1135 (24VDC) - Safety Relay, 24 VDC, AES, DIN Rail, 2 A, Screw
- Coil Voltage: 24VDC
- Contact Configuration: -
- Product Range: AES Series
- Relay Mounting: DIN Rail
- Contact Current: 2A
- Relay Terminals: Screw
- Contact Voltage AC Nom: -
- Contact Voltage DC Nom: 24V
- Contact Material: Silver Nickel
- IP Rating: IP20, IP40, IP54
- Approval Bodies: BG
- Approval Category: UL Recognised
- Current Rating: 0.2A
- External Depth: 121mm
- External Height: 100mm
- External Width: 22.5mm
- Operating Temperature Max: 55°C
- Operating Temperature Min: 0°C
- Power Consumption: 5W
- Supply Voltage V DC: 24V
