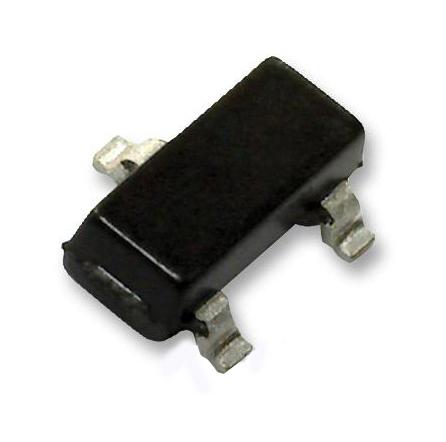

DIODES INC. - ZXTN25012EFLT - Bipolar (BJT) Single Transistor, High Gain, NPN, 12 V, 5 A, 350 mW, SOT-23, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 12V
- Transition Frequency ft: 260MHz
- Power Dissipation Pd: 350mW
- DC Collector Current: 5A
- DC Current Gain hFE: 800hFE
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 130mV
- Continuous Collector Current Ic Max: 2A
- Current Ib: 500mA
- Current Ic Continuous a Max: 5A
- Current Ic hFE: 2A
- Gain Bandwidth ft Typ: 260MHz
- Hfe Min: 370
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 350mW
- Termination Type: Surface Mount Device
- Turn Off Time: 72ns
- Turn On Time: 70ns
- Voltage Vcbo: 20V
