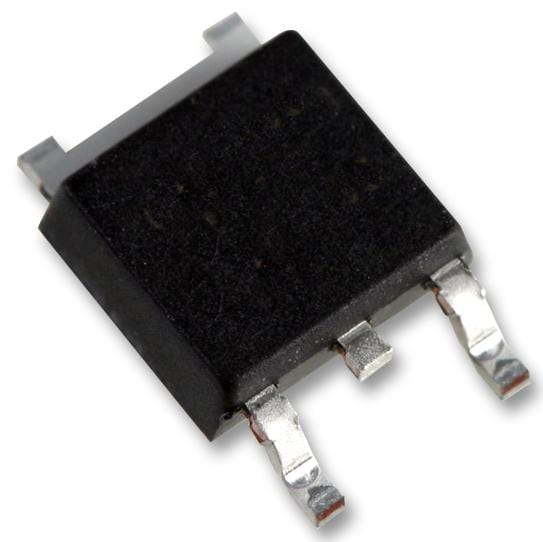

DIODES INC. - ZXMP4A16K - Power MOSFET, P Channel, 40 V, 9.9 A, 0.06 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 9.9A
- Drain Source Voltage Vds: -40V
- On Resistance Rds(on): 0.06ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -1V
- Power Dissipation Pd: 9.5W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Alternate Case Style: TO-252
- Current Id Max: -9.9A
- Current Temperature: 25°C
- External Depth: 10.5mm
- External Length / Height: 2.55mm
- External Width: 6.8mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 35A
- Termination Type: Surface Mount Device
- Voltage Vds Typ: -40V
- Voltage Vgs Max: -20V
- Voltage Vgs Rds on Measurement: 10V
