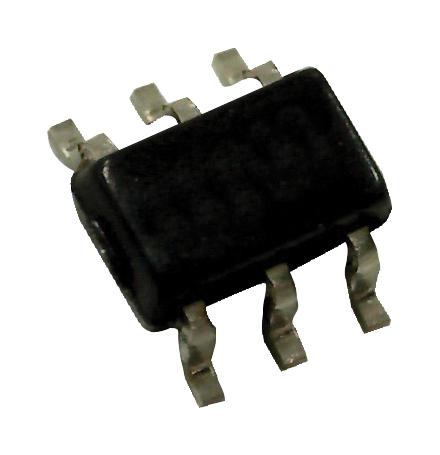

DIODES INC. - ZXMP3A17E6TA - Power MOSFET, P Channel, 30 V, 4 A, 0.07 ohm, SOT-23, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 4A
- Drain Source Voltage Vds: -30V
- On Resistance Rds(on): 0.07ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: -800mV
- Power Dissipation Pd: 1.1W
- Transistor Case Style: SOT-23
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Current Id Max: -4A
- Current Temperature: 25°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- No. of Transistors: 1
- On State Resistance Max: 70mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 1.1W
- Pulse Current Idm: 14.4A
- SMD Marking: 317
- Termination Type: Surface Mount Device
- Voltage Vds Typ: -30V
- Voltage Vgs Max: -20V
- Voltage Vgs Rds on Measurement: -10V
- Voltage Vgs th Min: -0.8V
