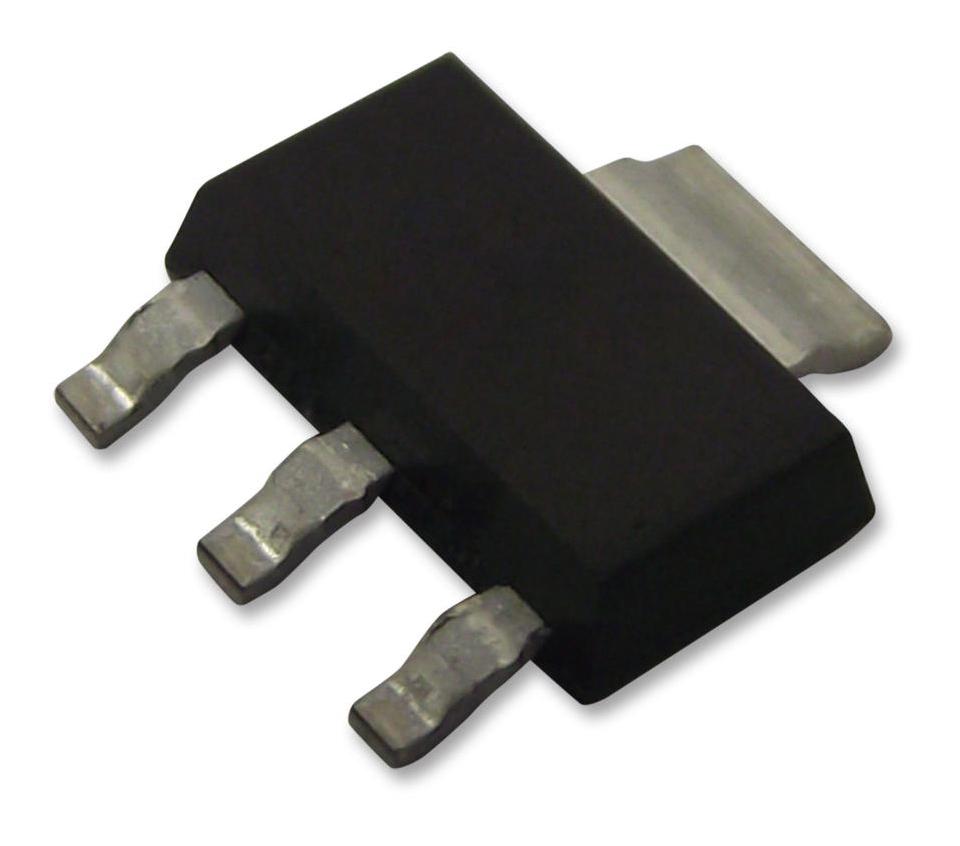

DIODES INC. - ZVN0545GTA - Power MOSFET, N Channel, 450 V, 140 mA, 50 ohm, SOT-223, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 140mA
- Drain Source Voltage Vds: 450V
- On Resistance Rds(on): 50ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 2W
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Capacitance Ciss Typ: 70pF
- Current Id Max: 140mA
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pin Configuration: 1(G),2(D), 3(S), TAB(D)
- Pulse Current Idm: 600mA
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 450V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 3V
- Voltage Vgs th Min: 1V
