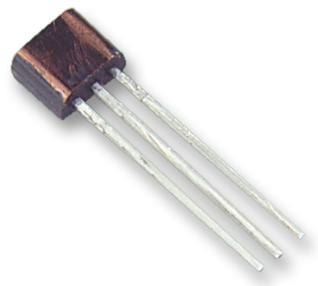

DIODES INC. - ZTX758 - Bipolar (BJT) Single Transistor, PNP, 400 V, 500 mA, 1 W, E-Line, Through Hole
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 400V
- Transition Frequency ft: 50MHz
- Power Dissipation Pd: 1W
- DC Collector Current: -500mA
- DC Current Gain hFE: 50hFE
- Transistor Case Style: E-Line
- No. of Pins: 3Pins
- Operating Temperature Max: 200°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 900mV
- Continuous Collector Current Ic Max: 500mA
- Current Ic @ Vce Sat: 100mA
- Current Ic Continuous a Max: 500mA
- Current Ic hFE: 200mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 50MHz
- Gain Bandwidth ft Typ: 50MHz
- Hfe Min: 40
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +200°C
- Power Dissipation Ptot Max: 2W
- Voltage Vcbo: 400V
