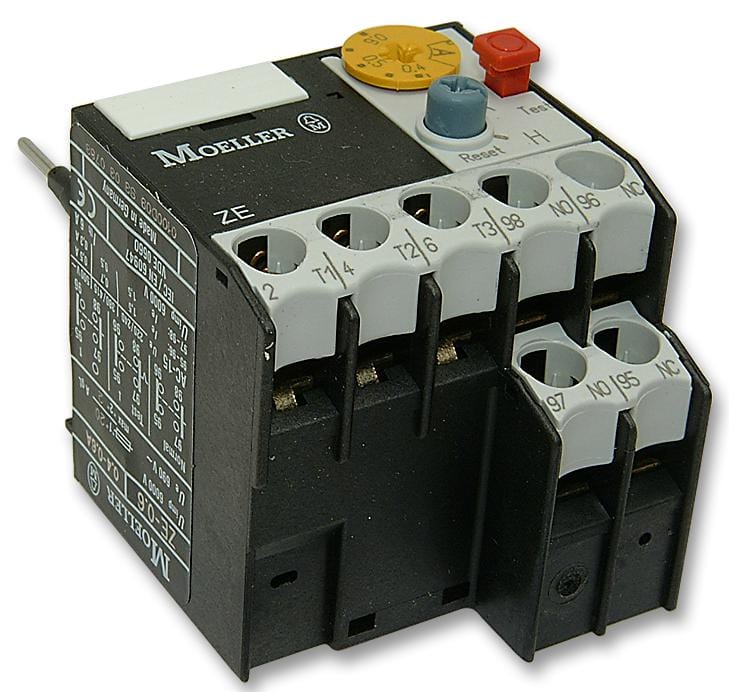

EATON MOELLER - ZE1.6 - Overload Relay, Direct Mounting, 1 A, 1.6 A
- Overload Adjustment Current Min: 1A
- Overload Adjustment Current Max: 1.6A
- Coil Voltage AC Max: -
- Coil Voltage DC Max: -
- Product Range: -
- SVHC: No SVHC (17-Dec-2015)
- Approval Bodies: VDE
- Contact Configuration: 4NO / 1NC
- External Depth: 58mm
- External Length / Height: 106mm
- For Use With: DIL E(E)M, DIUL E(E)M/21/MV, SDAINL EM, MSE Contactors
- IP / NEMA Rating: IP20
- Motor Flc Range: 1 to 1.6
- Operating Temperature Max: 50°C
- Operating Temperature Min: -25°C
- Supply Voltage Max: 690VAC
