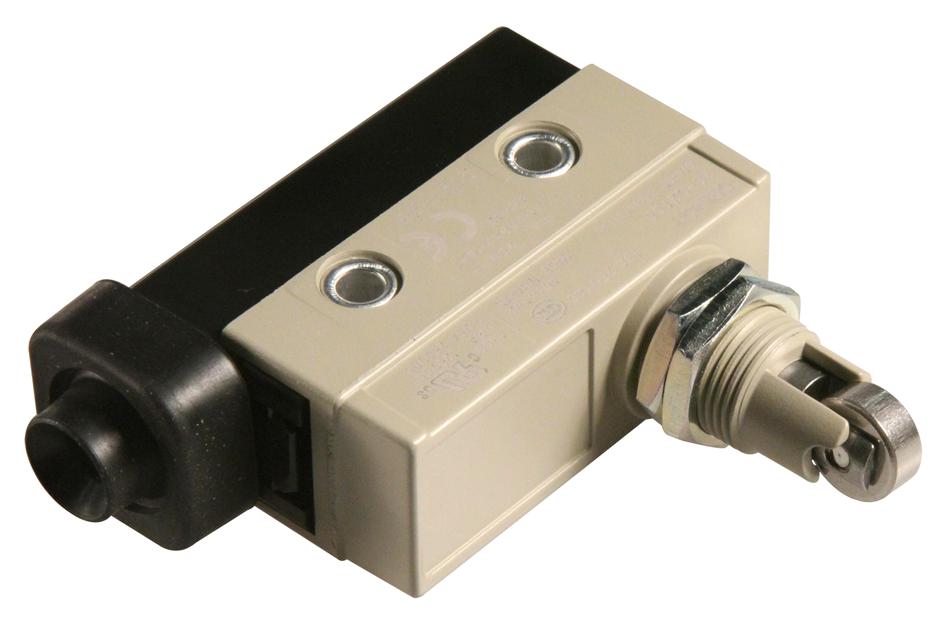

OMRON - ZC-Q2155 - Limit Switch, Cross Roller Plunger, SPDT, 10 A, 250 V, 11.8 N, ZC
- Limit Switch Actuator: Cross Roller Plunger
- Contact Configuration: SPDT
- Contact Current AC Max: 10A
- Contact Voltage AC Max: 250V
- Operating Force Max: 11.8N
- Product Range: ZC Series
- Contact Current DC Max: 10A
- Contact Voltage DC Max: 250V
- Actuator Type: Cross Roller
- External Depth: 60mm
- External Length / Height: 37mm
- External Width: 21.4mm
- Fixing Centres: 25.4mm
- No. of Electrical Operations: 750000
- No. of Mechanical Operations: 10000000
- Operating Force: 11.77N
- Operating Temperature Max: 80°C
- Operating Temperature Min: -10°C
- Pre-travel: 1.6mm
- Thermal Current Rating: 10A
- Voltage: 240V
