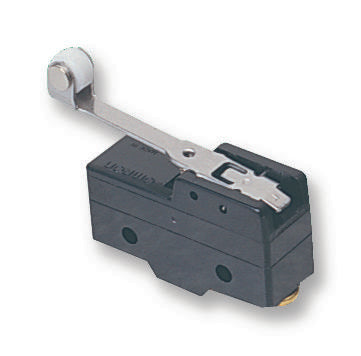

OMRON - Z-15GW2BOMI - Microswitch, Snap Action, Roller Lever, SPDT, Screw, 15 A, 250 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Roller Lever
- Contact Configuration: SPDT
- Switch Terminals: Screw
- Contact Current Max: 15A
- Contact Voltage DC Nom: 250VDC
- Product Range: Z Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 100gf
- Actuation Type: Roller Lever
- Actuator Type: Roller Lever
- Contact Current AC: 15A
- Contact Current AC Max: 15A
- Contact Current DC Max: 15A
- Contact Voltage AC Max: 240V
- Contact Voltage DC Max: 250V
- Differential Travel Max: 1.02mm
- External Depth: 49.2mm
- External Length / Height: 21.4mm
- External Width: 17.5mm
- Fixing Centres LxW: 25mm
- Lever Length: 48.5mm
- No. of Electrical Operations: 700000
- No. of Mechanical Operations: 10000000
- Operating Force: 0.98N
- Operating Temperature Max: 80°C
- Operating Temperature Min: -25°C
- Over Travel Min: 4mm
- Pre-travel: 7.1mm
- Release Force: 42gf
