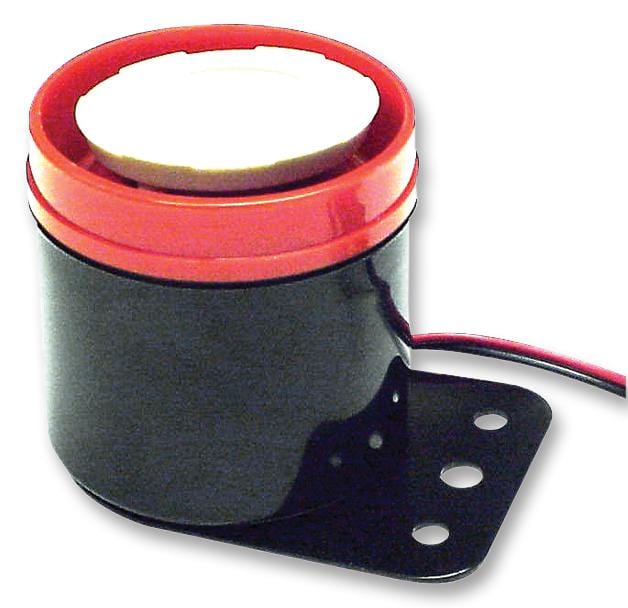

XL-5530-LW300-S-R Transducer, Piezo, 3kHz, 123DBA, 16VDC Projects Unlimited

PROJECTS UNLIMITEDUGS :XL-5530-LW300-S-R Code de commande:2309010

Prix:
Prix ​​promotionnel€29,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (15 unité)

Documents et téléchargements

description

PROJECTS UNLIMITED - XL-5530-LW300-S-R - Transducer, Piezo, 6 VDC to 16 VDC, Siren, 123 dBA, Audio Indicator, 260 mA, Panel Mount

  • Supply Voltage Min: 6VDC
  • Supply Voltage Max: 16VDC
  • Tones: Siren
  • Sound Level SPL: 123dBA
  • Transducer Function: Audio Indicator
  • Current Rating: 260mA
  • Resonant Frequency: 4kHz
  • Transducer Mounting: Panel
  • Product Range: -
  • SVHC: No SVHC (15-Jun-2015)
  • External Diameter: 54.5mm
  • External Height: 56mm
  • External Length / Height: 54.5mm
  • External Width: 54.5mm
  • Frequency: 3000Hz
  • Frequency Response Max: 4000Hz
  • Frequency Response Min: 2000Hz
  • Input Current: 260mA
  • Length: 54.5mm
  • Operating Current Max: 260mA
  • Sensitivity (dB): 123dB
  • Sound Level Distance: 100mm
