X14M745600L225 Crystal, 14.745600MHZ AEL Crystals

AEL CRYSTALSUGS :X14M745600L225 Code de commande:9509852

Prix:
Prix ​​promotionnel€0,49

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1690 unité)

Documents et téléchargements

description

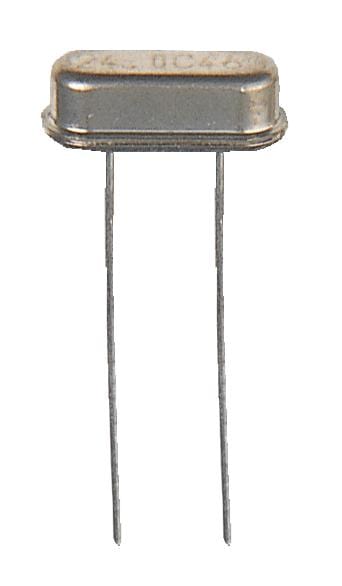

AEL CRYSTALS - X14M745600L225 - Crystal, 14.7456 MHz, Through Hole, 11.05mm x 4.65mm, 50 ppm, 30 pF, 50 ppm, HC49S

  • Frequency Nom: 14.7456MHz
  • Crystal Case: Through Hole, 11.05mm x 4.65mm
  • Frequency Stability + / -: 50ppm
  • Load Capacitance: 30pF
  • Frequency Tolerance + / -: 50ppm
  • Product Range: HC49S Series
  • Operating Temperature Min: -10°C
  • Operating Temperature Max: 60°C
  • SVHC: No SVHC (15-Jan-2019)
  • Accuracy: ± 30ppm
  • Crystal Mounting Type: Through Hole
  • Frequency: 14.7456MHz
  • Frequency Accuracy + @: 30ppm
  • Frequency Accuracy - @: 30ppm
  • Frequency Stability: ± 50ppm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -10°C to +60°C
  • Output Frequency: 14.7456MHz
  • Temperature Stability + @: 50ppm
  • Temperature Stability - @: 50ppm
  • Temperature Stabilty: ± 50ppm
