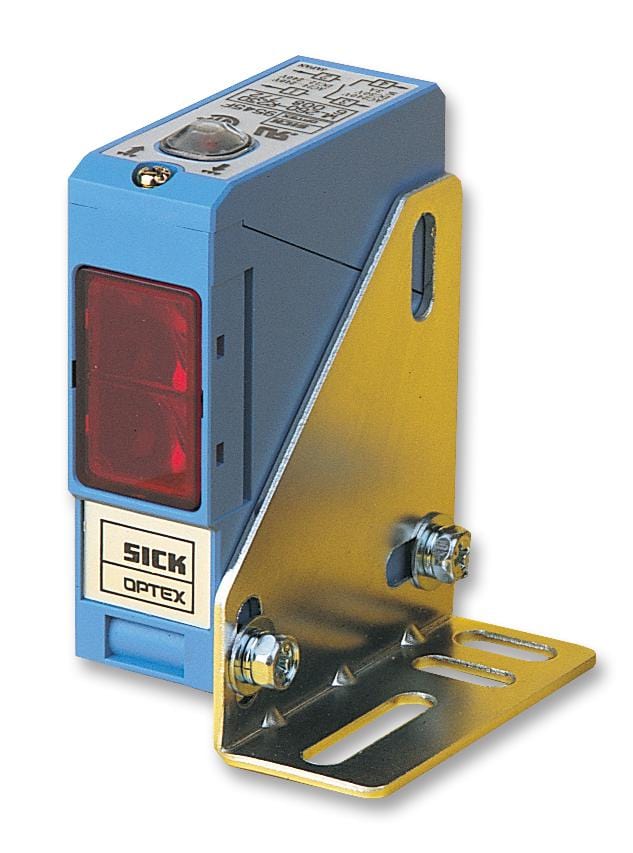

SICK - WT260-S280 - Photoelectric Sensor, W260 Series, Diffuse, 3.5 m, SPDT Relay, 12 V to 240 V
- Sensing Range Max: 3.5m
- Sensing Method: Diffuse
- Sensor Output: SPDT Relay
- Product Range: W260 Series
- Connection Method: Cable Gland
- Supply Voltage DC Min: 12V
- Supply Voltage DC Max: 240V
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 63mm
- External Length / Height: 77.5mm
- External Width: 25mm
- Frequency Response Max: 25Hz
- IP / NEMA Rating: IP66
- Operating Temperature Max: 55°C
- Operating Temperature Min: -25°C
- Output Current Max: 3A
- Power Consumption: 2W
- Response Time: 20ms
- Sensing Distance Max: 2m
- Sensing Distance Min: 20mm
- Sensing Range: 10mm to 3.5m
- Sensor Input: Optical
- Supply Voltage AC Max: 240V
- Supply Voltage AC Min: 24V
- Supply Voltage Range DC: 12V to 240V
