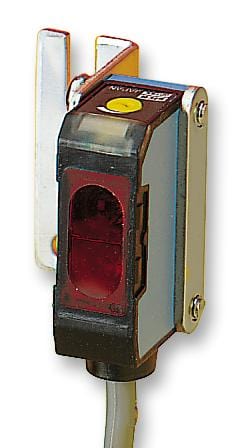

SICK - WT150-N162 - Photoelectric Sensor, W150 Series, Diffuse, 100 mm, NPN, 10 V to 30 V
- Sensing Range Max: 100mm
- Sensing Method: Diffuse
- Sensor Output: NPN
- Product Range: W150 Series
- Connection Method: Cable
- Supply Voltage DC Min: 10V
- Supply Voltage DC Max: 30V
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 17mm
- External Length / Height: 28mm
- External Width: 10mm
- Frequency Response Max: 1kHz
- IP / NEMA Rating: IP67
- Lead Length: 2m
- Operating Frequency: 1000Hz
- Operating Temperature Max: 55°C
- Operating Temperature Min: -25°C
- Output Current Max: 100mA
- Sensing Distance Max: 100mm
- Sensing Range: 2mm to 100mm
- Sensor Input: Optical
- Supply Voltage Range DC: 10V to 30V
