description

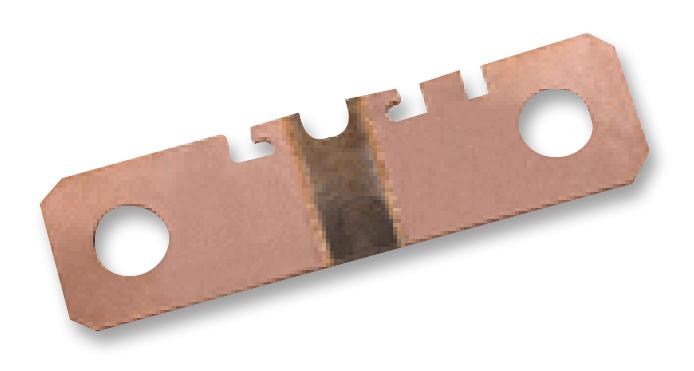

VISHAY - WSMS5515L5000JK - Current Sense Resistor, 500 µohm, WSMS5515, 3 W, Metal Alloy, ± 5%
- Resistance: 500µohm
- Product Range: WSMS5515 Series
- Power Rating: 3W
- Resistor Element Material: Metal Alloy
- Resistor Case Style: -
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 175ppm/°C
- Automotive Qualification Standard: -
- Operating Temperature Max: 170°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +170°C
- Resistor Mounting: Panel
- Resistor Terminals: Screw
