Key Operated

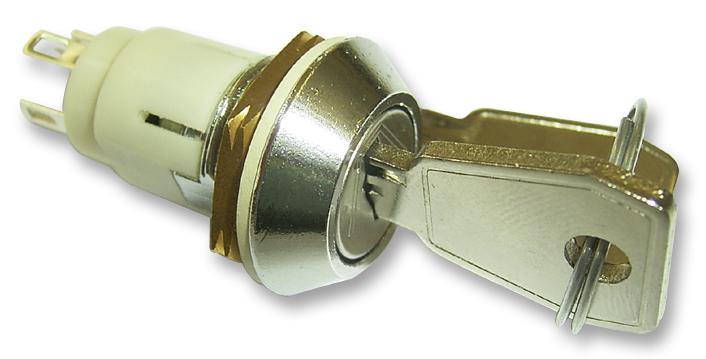

WRL-5-D-S-2 KEYSWITCH, SPDT, 2 POS, IP67, STD LORLIN
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
WRL-5-D-S-2 KEYSWITCH, SPDT, 2 POS, IP67, STD LORLIN

WRL-5-D-S-2 KEYSWITCH, SPDT, 2 Pos, IP67, STD LORLIN

LORLINUGS :WRL-5-D-S-2 Code de commande:1360557
Prix:
€30,47

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (310 unité)

Documents et téléchargements

Fiche produit

description

LORLIN - WRL-5-D-S-2 - Keylock Switch, SPDT, WRL, 2 Position, Solder, 1 A

  • Switch Operation: -
  • Contact Configuration: SPDT
  • Product Range: WRL Series
  • No. of Switch Positions: 2 Position
  • Switch Terminals: Solder
  • Contact Current Max: 1A
  • Contact Voltage AC Nom: 115V
  • Contact Voltage DC Nom: 50V
  • Angle of Throw: 90°
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Flat
  • Actuator Type: Flat
  • Contact Resistance: 20mohm
  • Contact Voltage AC Max: 115VAC
  • Contact Voltage DC Max: 50VDC
  • Flammability Rating: UL 94 V0
  • Full Angle: 90°
  • IP / NEMA Rating: IP67
  • Indexing Angle: 90°
  • Insulation Resistance Voltage: 500VDC
  • Material: Polyamide 6.6
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 10000
  • No. of Positions: 2Ways
  • Operating Position: 90°
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 16mm
  • Panel Cutout Width: 13mm
  • Panel Thickness Max: 4.5mm
  • Pin Length: 7.2mm
  • Proof Voltage: 750VDC
