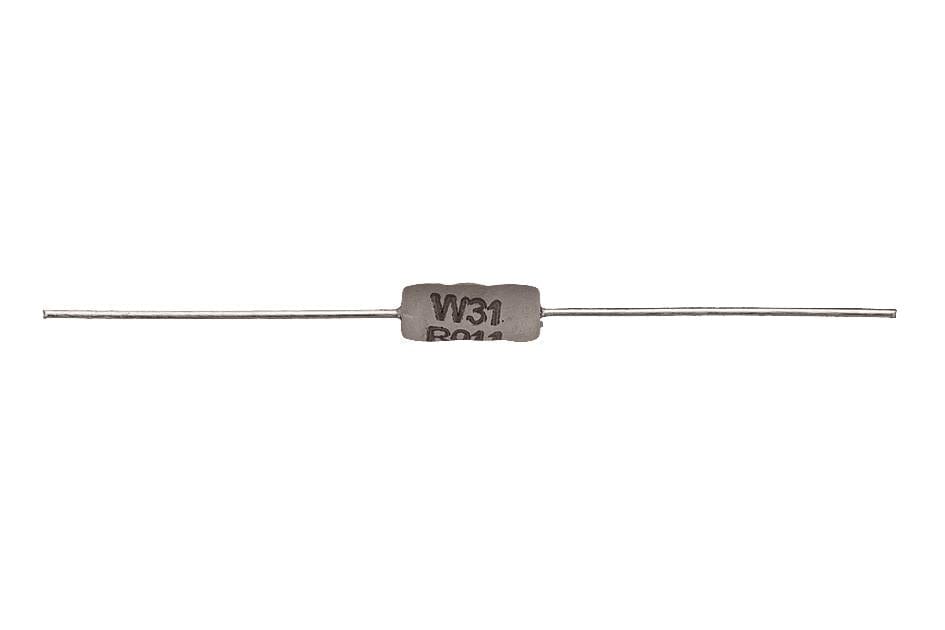

TT ELECTRONICS / WELWYN - W31-R51 JI - Through Hole Resistor, 0.51 ohm, W31, 3 W, ± 5%, Axial Leaded, 100 V
- Resistance: 0.51ohm
- Product Range: W31 Series
- Power Rating: 3W
- Resistance Tolerance: ± 5%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 100V
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 200ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 5.6mm
- Element Limiting Voltage: 100V
- External Length / Height: 13mm
- Full Power Rating Temperature: 25°C
- Lead Diameter: 0.8mm
- Lead Length: 22.75mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 200ppm/°C
- Temperature Coeff. -: 200ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
