W31-10RJI Res, 10R, 5%, 3W, Axial, Wirewound TT Electronics / WELWYN

TT ELECTRONICS / WELWYNUGS :W31-10RJI Code de commande:1565223

Prix:
Prix ​​promotionnel€2,68

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3748 unité)

Documents et téléchargements

description

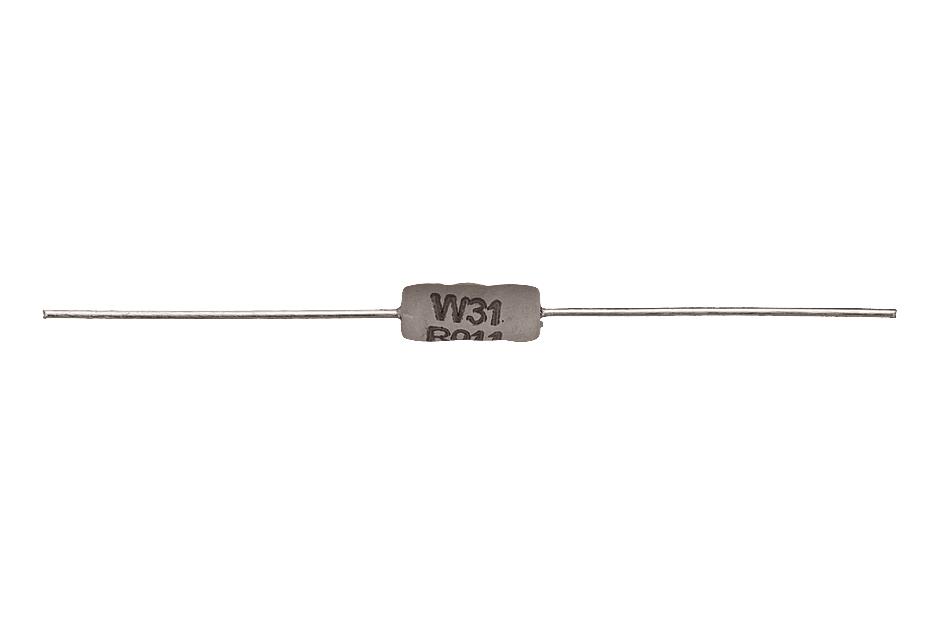

TT ELECTRONICS / WELWYN - W31-10RJI - Through Hole Resistor, 10 ohm, W31, 3 W, ± 5%, Axial Leaded, 100 V

  • Resistance: 10ohm
  • Product Range: W31 Series
  • Power Rating: 3W
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 100V
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 150ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 5.6mm
  • External Length / Height: 13mm
  • Lead Diameter: 0.8mm
  • Lead Length: 22.75mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Resistor Mounting: Through Hole
