VTX-146-080-125 Transformer, 80VA, 2 X 25V multicomp Pro

MULTICOMP PROUGS :VTX-146-080-125 Code de commande:1675068

Prix:
Prix ​​promotionnel€39,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (18 unité)

Documents et téléchargements

description

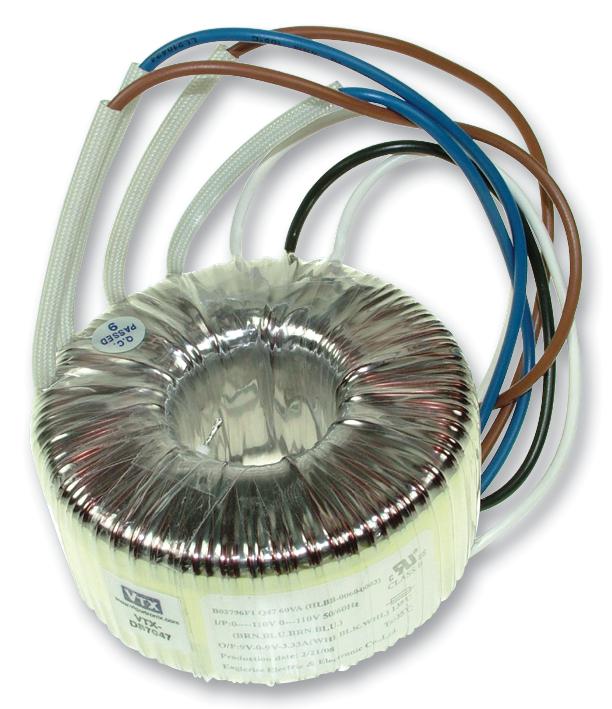

MULTICOMP PRO - VTX-146-080-125 - Toroidal Transformer, 40mm x 90mm, 80 VA, 230V, 2 x 25V, Single Primary, Dual Secondary, Open

  • Power Rating: 80VA
  • Secondary Voltages: 2 x 25V
  • Secondary Current Nom: 1.6A
  • Transformer Mounting: Chassis
  • Primary Voltages: 230V
  • Product Range: VTX Series
  • SVHC: No SVHC (07-Jul-2017)
  • AC Power: 80VA
  • Bolt Length: 50mm
  • Bolt Size Max: M6
  • Current Rating: 1.6A
  • External Diameter: 90mm
  • External Length / Height: 40mm
  • Lead Length: 150mm
  • Output 2 Voltage Max: 25V
  • Output Voltage: 25V
  • Regulation: 11%
  • Single Primary Voltage: 230V
  • Single Secondary Voltage: 25VAC
  • Temperature Rise: 50°C
  • Transformer Type: Toroidal
  • Weight: 1kg
