VLMC3100-GS08 LED, PLCC2, Green, 1.6mcd, 575NM Vishay

VISHAYUGS :VLMC3100-GS08 Code de commande:1659076

Prix:
Prix ​​promotionnel€0,93

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (18244 unité)

Documents et téléchargements

description

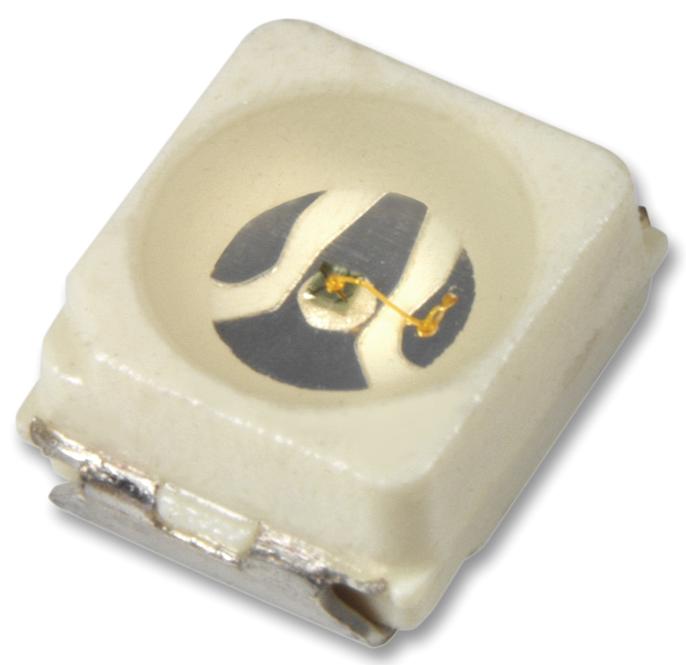

VISHAY - VLMC3100-GS08 - LED, Green, SMD, PLCC-2, 2 mA, 1.9 V, 575 nm

  • LED Colour: Green
  • LED Mounting: SMD
  • LED Case Size: PLCC-2
  • Forward Current If: 2mA
  • Forward Voltage: 1.9V
  • Wavelength Typ: 575nm
  • Luminous Intensity: 1.6mcd
  • Viewing Angle: 120°
  • Lens Shape: Round
  • Product Range: SMD Green LED
  • Automotive Qualification Standard: AEC-Q100
  • MSL: MSL 2A - 4 weeks
  • SVHC: No SVHC (15-Jan-2019)
  • Angle of Half Sensitivity ±: 60°
  • Bulb Size: 2.4mm
  • Dominant Wavelength: 575nm
  • Forward Current If Max: 2mA
  • Forward Voltage VF Max: 2.4V
  • LED / Lamp Size: PLCC-2
  • LED Type: Standard
  • Luminous Intensity Typ: 1.6mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
  • Peak Wavelength: 565nm
  • Reverse Protection Voltage: 6V
