description

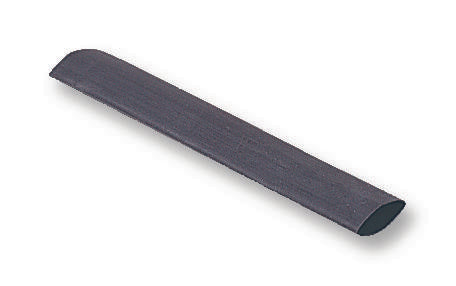

PRO POWER - VFFC-1/8-0 - Heat Shrink Tubing, VFFC Series Polyolefin, 2:1, 0.125 ", 3.2 mm, Black, 16.4 ft, 5 m
- Shrink Ratio: 2
- I.D. Supplied - Imperial: 0.125"
- I.D. Supplied - Metric: 3.2mm
- Shrink Tubing / Boot Colour: Black
- Length - Imperial: 16.4ft
- Length - Metric: 5m
- I.D. Recovered Max - Imperial: 0.062"
- I.D. Recovered Max - Metric: 1.6mm
- Shrink Tubing / Boot Material: PO (Polyolefin)
- Product Range: -
- Accessory Type: Heat Shrink
- Body Material: PO (Polyolefin)
- Cable Diameter Max: 3.43mm
- Cable Diameter Min: 1.6mm
- Colour: Black
- Dielectric Strength: 20kV/mm
- Flammability Rating: VW-1
- Fully Shrunk Diameter: 1.6mm
- I.D. Max Recovered: 1.6mm
- I.D. Supplied: 3.2mm
- Internal Diameter: 3.2mm
- Length, Imperial: 16.4ft
- Material: Irradiated Polyolefin
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Reel Length (Imperial): 16ft
- Reel Length (Metric): 5m
- Shrink Temperature: 80°C
- Shrink Type: Heat
- Unshrunk Diameter: 3.2mm
