v5.5MLA1206NH Varistor, 1206, 5.5V LITTELFUSE

LITTELFUSEUGS :V5.5MLA1206NH Code de commande:1816940

Prix:
Prix ​​promotionnel€1,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (800 unité)

description

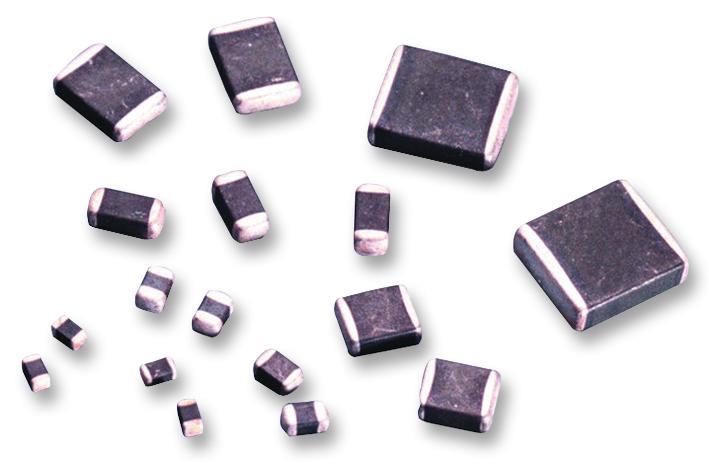

LITTELFUSE - V5.5MLA1206NH - TVS Varistor, 4 V, 5.5 V, 17.5 V, 1206 [3216 Metric], Multilayer Varistor (MLV)

  • Voltage Rating VAC: 4V
  • Voltage Rating V DC: 5.5V
  • Product Range: -
  • Clamping Voltage Vc Max: 17.5V
  • Varistor Case Style: 1206 [3216 Metric]
  • Varistor Type: Multilayer Varistor (MLV)
  • Peak Surge Current @ 8/20µs: 150A
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 400mJ
  • Automotive Qualification Standard: -
  • Capacitance: 3500pF
  • Clamping Voltage: 17.5V
  • Operating Temperature Range: -55°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 150A
  • Suppressor Type: Varistor
  • Surge Current: 150A
  • Varistor Voltage @ 1mA: 7.1V
  • Varistor Voltage @ 1mA Max: 9.3V
