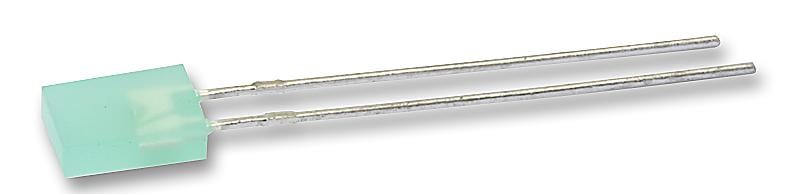

CML INNOVATIVE TECHNOLOGIES - V54123-17 - LED, Green, Through Hole, 2mm x 5mm, 20 mA, 2.2 V, 562 nm
- LED Colour: Green
- LED Mounting: Through Hole
- LED Case Size: 2mm x 5mm
- Forward Current If: 20mA
- Forward Voltage: 2.2V
- Wavelength Typ: 562nm
- Luminous Intensity: 4mcd
- Viewing Angle: 100°
- Lens Shape: Rectangular
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Bulb Size: 2mm x 5mm
- Current If Luminous Intensity: 20mA
- Dominant Wavelength: 562nm
- External Depth: 7.5mm
- External Length / Height: 1.98mm
- External Width: 5mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.2V
- LED / Lamp Size: 2mm x 5mm
- LED Type: Standard
- Lead Cross-section Depth: 0.51mm
- Lead Cross-section Width: 0.51mm
- Lead Length: 25mm
- Lead Spacing: 2.54mm
- Luminous Intensity Typ: 4mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 100°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +100°C
- PIV Max: 5V
- Peak Forward Current: 30mA
- Peak Wavelength: 532nm
- Voltage Vf Typ: 2.2V
