V4LS Microswitch, v4, Plunger SAIA-Burgess

SAIA-BURGESSUGS :V4LS Code de commande:1162617

Prix:
Prix ​​promotionnel€15,81

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13765 unité)

Documenten en downloads

description

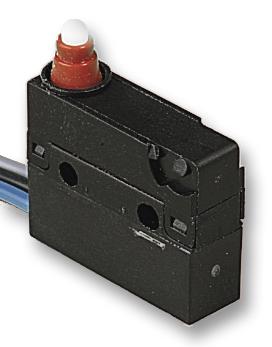

SAIA-BURGESS - V4LS - Microswitch, Snap Action, Plunger, SPDT, Wire Leaded, 5 A, 250 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Plunger
  • Contact Configuration: SPDT
  • Switch Terminals: Wire Leaded
  • Contact Current Max: 5A
  • Contact Voltage DC Nom: 250VDC
  • Product Range: V4L Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 2.5N
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Plunger
  • Actuator Type: Plunger
  • Approval Bodies: CSA, UL
  • Contact Current AC: 5A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 250V
  • Differential Travel Max: 0.6mm
  • External Depth: 20mm
  • External Length / Height: 16.05mm
  • External Width: 6.45mm
  • Fixing Centres LxW: 9.5mm
  • Height Max: 16.05mm
  • IP / NEMA Rating: IP67
  • Operating Force: 2.5N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Over Travel Min: 2.2mm
  • Pre-travel: 1.5mm
  • Release Force: 40gf
  • Supply Current: 5A
  • Switch Case: Nylon (Polyamide)
