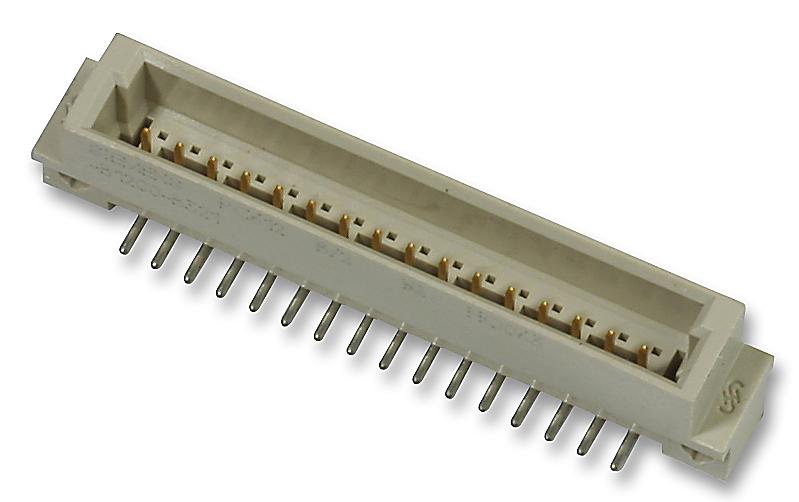

AMP - TE CONNECTIVITY - V42254-B1200-C480 - DIN 41612 Connector, Type C, 48 Contacts, Plug, 2.54 mm, 2 Row, a + b + c
- Product Range: Type C Series
- No. of Contacts: 48Contacts
- Gender: Plug
- Pitch Spacing: 2.54mm
- No. of Rows: 2 Row
- Rows Loaded: a + b + c
- Contact Plating: Gold Plated Contacts
- Contact Material: Brass
- No. of Mating Cycles: 400
- Colour: Pebble Grey
- Contact Resistance: 20mohm
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Flammability Rating: UL94V-0
- Insulation Resistance: 100Mohm
- Lead Spacing: 2.54mm
- Material: Polyester
- Mating Force: 17N
- No. of Rows: 2Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Termination Method: Solder
