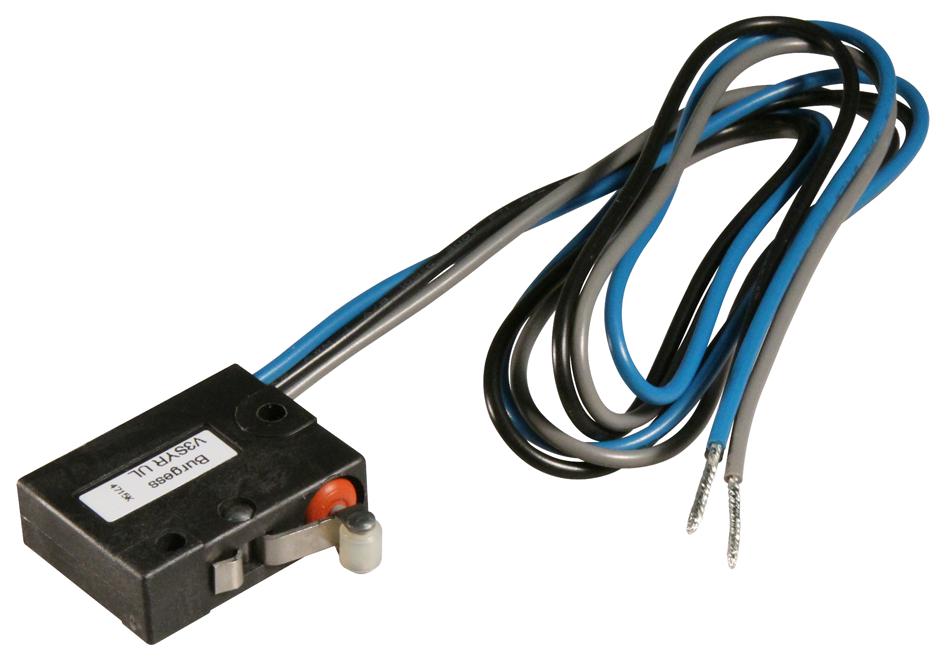

V3SYR UL Microswitch, v3, Roller Lever SAIA-Burgess

SAIA-BURGESSUGS :V3SYR UL Code de commande:1162605

Prix:
Prix ​​promotionnel€43,57

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3855 unité)

Documenten en downloads

description

SAIA-BURGESS - V3SYR UL - Microswitch, Snap Action, Short Roller Lever, SPDT-1NC / 1NO, Wire Leaded, 5 A, 30 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Short Roller Lever
  • Contact Configuration: SPDT-1NC / 1NO
  • Switch Terminals: Wire Leaded
  • Contact Current Max: 5A
  • Contact Voltage DC Nom: 30VDC
  • Product Range: V3S Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 3.9N
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Roller Lever
  • Actuator Type: Roller Lever
  • Contact Current AC: 5A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 6A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 30V
  • Differential Travel Max: 0.4mm
  • External Depth: 31.7mm
  • External Length / Height: 24.2mm
  • External Width: 10.5mm
  • Fixing Centres LxW: 22.2mm
  • IP / NEMA Rating: IP67
  • Lead Length: 500mm
  • No. of Mechanical Operations: 10000000
  • Operating Force: 4N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Pre-travel: 2.34mm
  • Release Force: 1.1N
  • Switch Case: Nylon (Polyamide)
  • Switch Operation: Off-On
