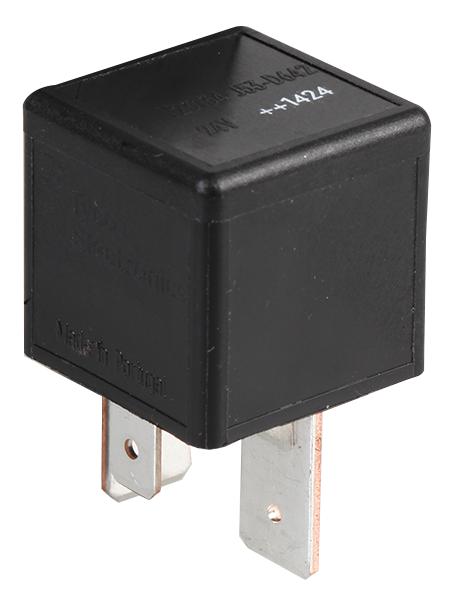

TE CONNECTIVITY - 9-1393303-7 - Automotive Relay, 24 VDC, 50 A, SPST-NO, Panel Mount, Quick Connect, Power Relay F7
- Coil Voltage: 24VDC
- Contact Current: 50A
- Contact Configuration: SPST-NO
- Relay Mounting: Panel
- Relay Terminals: Quick Connect
- Product Range: Power Relay F7 Series
- Contact Voltage DC Nom: 24V
- Coil Resistance: 324ohm
- Contact Material: Silver Nickel Oxide
- Coil Type: DC
- Coil Voltage VDC Nom: 24V
- Contact Current DC Max: 70A
- Contact Current Max: 240A
- Contact Voltage DC Max: 24V
- Current Rating: 70A
- Dielectric Voltage Coil to Contact: 500VAC
- Dielectric Voltage Contact to Contact: 500VAC
- External Depth: 25.9mm
- External Height: 24.9mm
- External Length / Height: 24.9mm
- External Width: 25.9mm
- Mechanical Life: 10 x 10? operations
- Must Actuate Voltage: 14.2VDC
- Must Release Voltage: 3.2VDC
- No. of Pins: 4Pins
- Nom Operating Power: 1.6W
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Time: 7ms
- Relay Type: General Purpose
- Release Time: 2ms
- Switch Current Max: 70A
- Switched Current Max: 240A
- Switching Current Max: 70A
- Switching Current Min: 1A
- Weight: 1.3g
