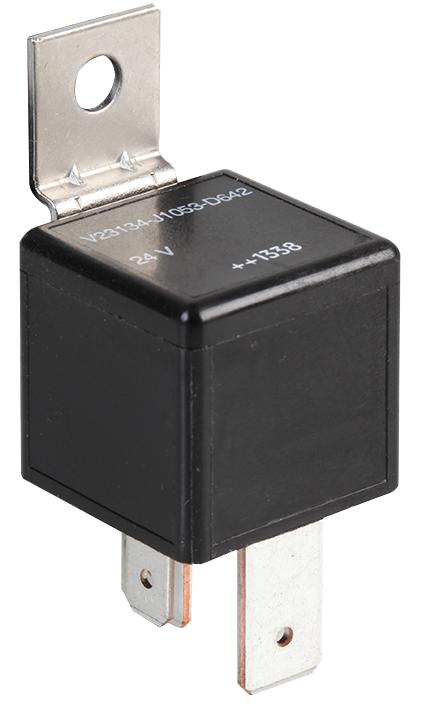

V23134J1053D642 Relay, Automotive, SPST-NO, 24Vdc, 50A Te Connectivity

TE CONNECTIVITYUGS :V23134J1053D642 Code de commande:9913793

Prix:
Prix ​​promotionnel€17,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (319 unité)

Documents et téléchargements

description

TE CONNECTIVITY - 1-1393304-1 - Automotive Relay, 24 VDC, 50 A, SPST-NO, Panel Mount, Quick Connect, Power Relay F7

  • Coil Voltage: 24VDC
  • Contact Current: 50A
  • Contact Configuration: SPST-NO
  • Relay Mounting: Panel
  • Relay Terminals: Quick Connect
  • Product Range: Power Relay F7 Series
  • Contact Voltage DC Nom: 24V
  • Coil Resistance: 324ohm
  • Contact Material: Silver Nickel Oxide
  • SVHC: No SVHC (27-Jun-2018)
  • Coil Type: DC
  • Coil Voltage VDC Nom: 24V
  • Contact Current DC Max: 25A
  • Contact Current Max: 240A
  • Contact Voltage DC Max: 24V
  • Current Rating: 25A
  • Dielectric Voltage Coil to Contact: 500VAC
  • Dielectric Voltage Contact to Contact: 500VAC
  • External Depth: 25.9mm
  • External Height: 24.9mm
  • External Length / Height: 24.9mm
  • External Width: 25.9mm
  • Flammability Rating: UL94-HB
  • Mechanical Life: 10000000 operations
  • Must Actuate Voltage: 14.4VDC
  • Must Release Voltage: 3.2VDC
  • No. of Pins: 4Pins
  • Nom Operating Power: 1.6W
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Operating Time: 7ms
  • Relay Type: General Purpose
  • Release Time: 2ms
  • Switch Current Max: 25A
  • Switched Current Max: 240A
  • Weight: 1.3g
