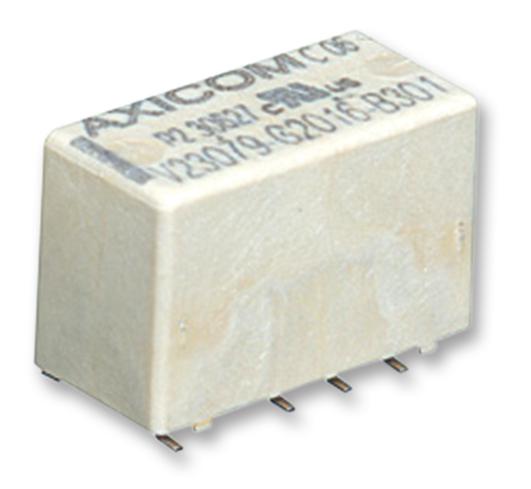

AXICOM - TE CONNECTIVITY - 5-1393788-7 - Signal Relay, 12 VDC, DPDT, 2 A, P2/V23079, Surface Mount, Non Latching
- Coil Voltage: 12VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: P2/V23079 Series
- Relay Mounting: SMD
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 220V
- Contact Material: Silver Nickel
- Coil Resistance: 1.029kohm
- SVHC: No SVHC (27-Jun-2018)
- Approvals & Standards: IEC, UL
- Coil Power Continuous: 140mW
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Current Max: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 220V
- Contact Voltage DC Nom: 220V
- External Depth: 14.5mm
- External Height: 10.4mm
- External Length / Height: 9.9mm
- External Width: 7.2mm
- Nom Operating Power: 140mW
- Operating Voltage Range: 9V to 26.15V
- Relay Type: General Purpose
