V10P10-m3/86A Diode, Schottky Rectifier, 10A, 100V Vishay

VISHAYUGS :V10P10-M3/86A Code de commande:1736078

Prix:
Prix ​​promotionnel€1,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (19884 unité)

Documents et téléchargements

description

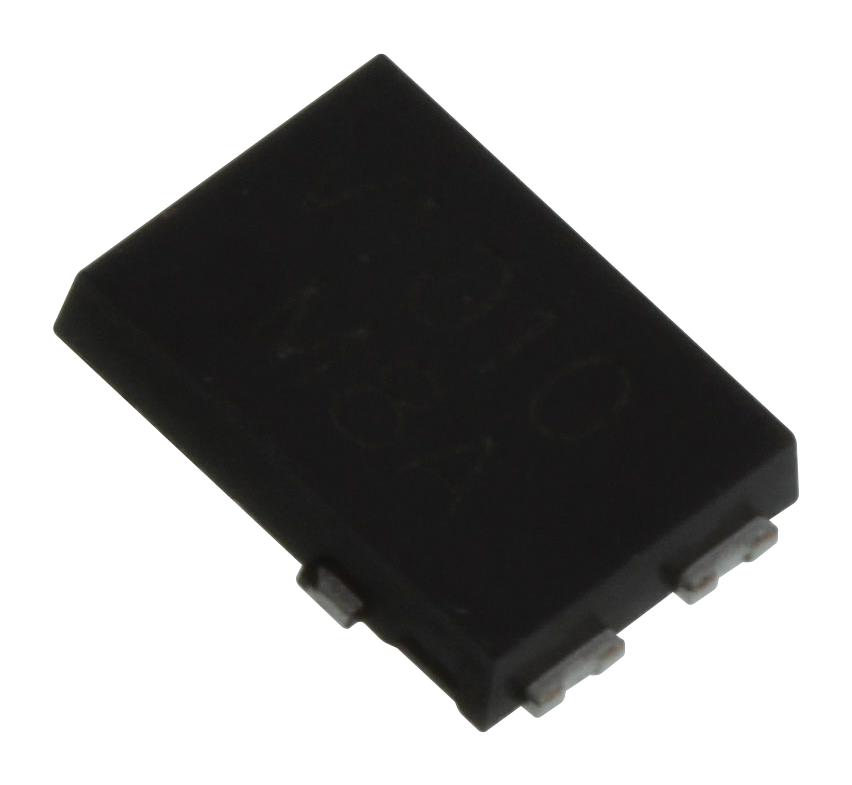

VISHAY - V10P10-M3/86A - Schottky Rectifier, 100 V, 10 A, Single, TO-277A, 3 Pins, 620 mV

  • Repetitive Reverse Voltage Vrrm Max: 100V
  • Forward Current If(AV): 10A
  • Diode Configuration: Single
  • Diode Case Style: TO-277A
  • No. of Pins: 3Pins
  • Forward Voltage VF Max: 620mV
  • Forward Surge Current Ifsm Max: 180A
  • Operating Temperature Max: 150°C
  • Product Range: V10P1 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • Current Ifsm: 180A
  • Diode Type: Schottky
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +150°C
  • Semiconductor Technology: Si
  • Termination Type: Surface Mount Device
