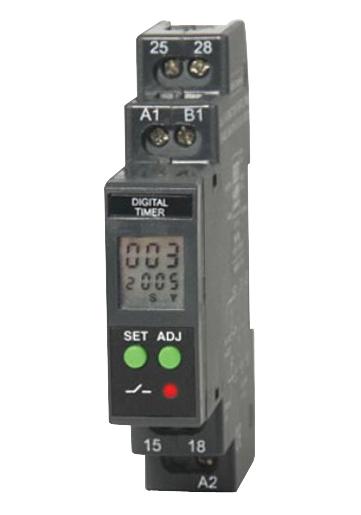

GIC - V0DDTS - DIN Rail Digital Timer, Eliro, Multifunction, 0.1 s, 999 h, 1 Ranges, 3
- Product Range: Eliro Series
- Timer Functions: Multifunction
- Time Min: 0.1s
- Time Max: 999h
- No. of Timing Ranges: 1Ranges
- No. of Digits: 3
- Timer Output: 2 Changeover Relays
- Supply Voltage Max: 240V
- Current Rating Nom: 8A
- Connection / Termination: Screw Terminals
- SVHC: No SVHC (15-Jun-2015)
- Contact Configuration: SPDT
- Contact Current: 8A
- Contact Current AC Max: 8A
- Contact Current DC Max: 8A
- Contact Voltage AC Max: 240V
- Contact Voltage DC Max: 24V
- Contact Voltage VAC: 240V
- Contact Voltage VDC: 24V
- Delay Time Range: 0.1s to 999h
- External Depth: 76mm
- External Length / Height: 89mm
- External Width: 17.5mm
- Nom Input Voltage: 240V
- Operating Temperature Max: 55°C
- Operating Temperature Min: -10°C
- Relay Mounting: DIN Rail
- Relay Terminals: Screw
- Supply Voltage Range: 24V AC to 240V AC, 24V DC to 240V DC
- Timing Adjustment: Pushbutton
