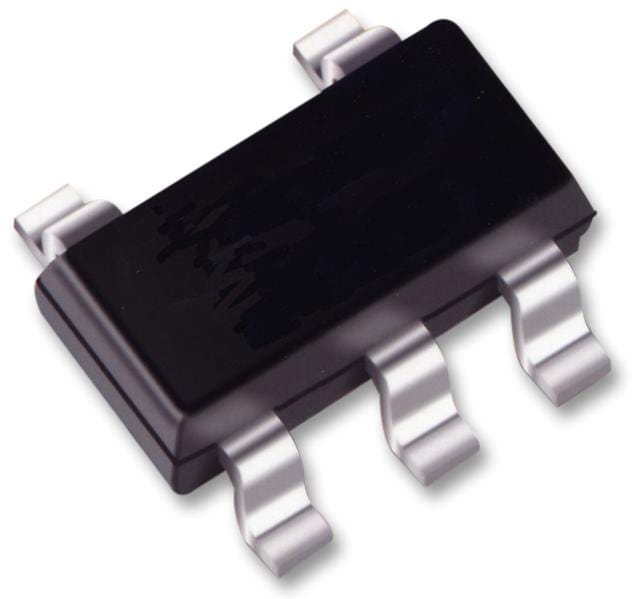

UMN1NTR Diode, High Speed Switching ROHM

ROHMUGS :UMN1NTR Code de commande:1680108

Prix:
Prix ​​promotionnel€0,93

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

ROHM - UMN1NTR - Small Signal Diode, Dual Pair Common Cathode, 80 V, 25 mA, 900 mV, 4 ns, 250 mA

  • Diode Configuration: Dual Pair Common Cathode
  • Repetitive Reverse Voltage Vrrm Max: 80V
  • Forward Current If(AV): 25mA
  • Forward Voltage VF Max: 900mV
  • Reverse Recovery Time trr Max: 4ns
  • Forward Surge Current Ifsm Max: 250mA
  • Operating Temperature Max: 150°C
  • Diode Case Style: SOT-353
  • No. of Pins: 5Pins
  • Product Range: UMN1N Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Current If @ Vf: 5mA
  • Diode Type: Switching
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Peak Forward Current: 80mA
  • Power Dissipation Ptot Max: 150mW
  • Termination Type: Surface Mount Device
