Documents et téléchargements
description

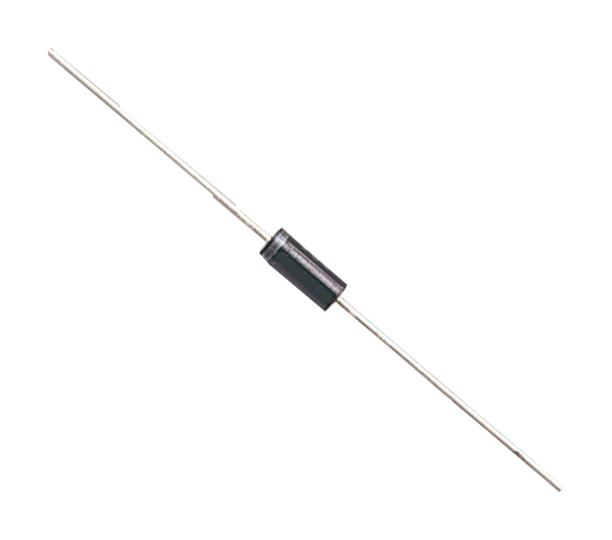

VISHAY - UF5407-E3/73 - Fast / Ultrafast Diode, 800 V, 3 A, Single, 1.7 V, 75 ns, 150 A
- Repetitive Reverse Voltage Vrrm Max: 800V
- Forward Current If(AV): 3A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.7V
- Reverse Recovery Time trr Max: 75ns
- Forward Surge Current Ifsm Max: 150A
- Operating Temperature Max: 150°C
- Diode Case Style: DO-201AD
- No. of Pins: 2 Pin
- Product Range: UF540 Series
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- Current Ifsm: 150A
- Diode Type: Fast Recovery
- External Diameter: 5.3mm
- External Length / Height: 9.5mm
- Forward Voltage: 1.7V
- Junction Temperature Tj Max: 150°C
- No. of Pins: 2Pins
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Reverse Recovery Time trr Typ: 75ns
