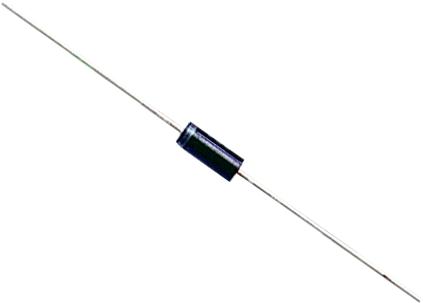

TAIWAN SEMICONDUCTOR - UF4002 - Fast / Ultrafast Diode, 100 V, 1 A, Single, 1 V, 50 ns, 30 A
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 1V
- Reverse Recovery Time trr Max: 50ns
- Forward Surge Current Ifsm Max: 30A
- Operating Temperature Max: 150°C
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2 Pin
- Product Range: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Alternate Case Style: DO-41
- Approval Bodies: UL
- Current If @ Vf: 1A
- Current Ifsm: 30A
- Current Temperature: 25°C
- Diode Type: Fast Recovery
- External Depth: 2.7mm
- External Diameter: 2.7mm
- External Length / Height: 5.2mm
- External Width: 2.7mm
- Forward Current If Max: 1A
- Forward Voltage: 1V
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -65°C
- Lead Length: 25.4mm
- No. of Pins: 2Pins
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Reverse Recovery Time trr Typ: 50ns
- Termination Type: Axial Leaded
- Weight: 0.0003kg
