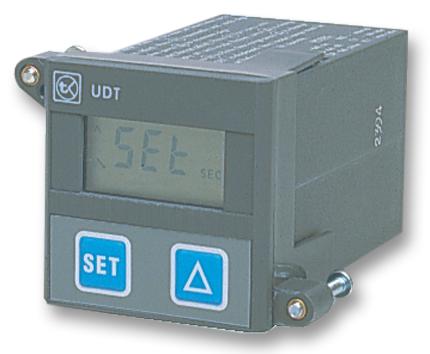

TEMPATRON - UDT - Timer, UDT Series, 6 Ranges, 0.1 s to 99.9 h, 1 Changeover Relay Output, 300 VDC, Plug-In
- Product Range: UDT Series
- Timer Functions: Multifunction
- Time Min: 0.1s
- Time Max: 99.9h
- No. of Timing Ranges: 6Ranges
- No. of Digits: 3
- Timer Output: 1 Changeover Relay
- Supply Voltage Max: 300VDC
- Current Rating Nom: 7A
- Connection / Termination: Plug-In
- Panel Cutout Height: 45mm
- Panel Cutout Width: 45mm
- SVHC: No SVHC (15-Jan-2019)
- Adjustment Type: Pushbutton
- Coil Voltage VAC Nom: 264V
- Coil Voltage VDC Nom: 300V
- Contact Configuration: SPCO
- Contact Current AC Max: 7A
- Contact Current DC Max: 7A
- Contact Rating: 7A
- Contact Voltage AC Max: 240V
- Contact Voltage DC Max: 30V
- Delay Time Range: 0.1s to 99.9h
- External Depth: 75mm
- External Length / Height: 48mm
- External Width: 48mm
- Height: 48mm
- No. of Pins: 11Pins
- Nom Input Voltage: 264V
- Operating Temperature Max: 60°C
- Operating Temperature Min: -10°C
- Operating Time Range: 9.99s, 99.9s, 9.99m, 99.9m, 9.99hr, 99.9hr.
- Panel Cutout Size: 45sq mm
- Relay Mounting: Panel, Quick Connect
- Repeat Accuracy +: 0.3%
- Repeat Accuracy -: 0.3%
