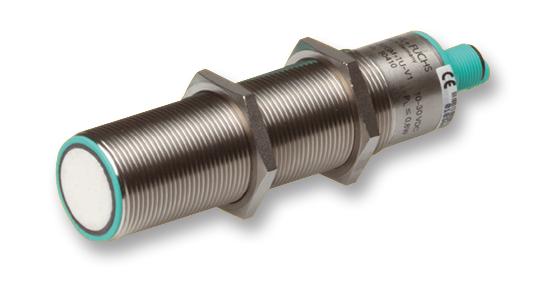

PEPPERL+FUCHS - UC2000-30GM-IU-R2-V15 - Ultrasonic Proximity Sensor, 2 m, Cylindrical, Stainless Steel, Analogue Output
- Sensing Range Min: 80mm
- Sensing Range Max: 2m
- Beam Angle: -
- Switching Frequency: 180kHz
- External Diameter: -
- Sensitivity (dB): -
- Operating Temperature Min: -25°C
- Operating Temperature Max: 70°C
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- External Length / Height: 113mm
- Frequency: 180kHz
- Operating Temperature Range: -25°C to +70°C
- Output Current Max: 20mA
- Output Current Min: 4mA
- Output Voltage Max: 10V
- Output Voltage Min: 0V
- Response Time: 35ms
- Sensing Distance Max: 2000mm
- Sensing Distance Min: 80mm
- Sensor Output: Current / Voltage
- Supply Voltage DC Max: 30V
- Supply Voltage DC Min: 10V
- Supply Voltage Max: 30VDC
- Supply Voltage Min: 10VDC
- Thread Size: M30
