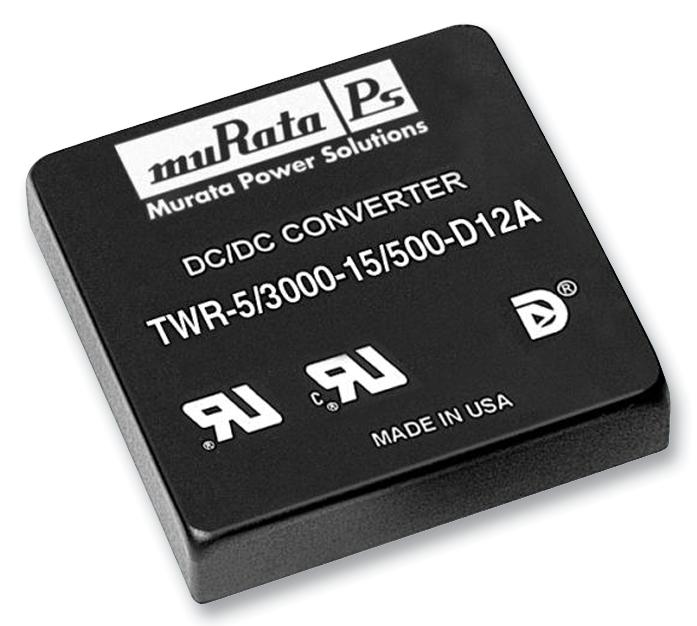

MURATA POWER SOLUTIONS - TWR-5/3000-15/500-D12A-C - Isolated Through Hole DC/DC Converter, ITE, 4:1, 20 W, 3 Output, 5 V, 3 A
- No. of Outputs: 3 Output
- Output Power Max: 20W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 3A
- Output Voltage - Output 2: 15V
- Output Current - Output 2: 500mA
- Output Voltage - Output 3: -15V
- Output Current - Output 3: 500mA
- Product Range: TWR A Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 50.8mm
- Height: 11.43mm
- Depth: 50.8mm
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: EN, UL
- Approvals & Standards: UL
- Efficiency: 82%
- External Depth: 11.43mm
- External Length / Height: 50.8mm
- External Width: 50.8mm
- Isolation Voltage: 1.5kV
- No. of Outputs: 3Outputs
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Output Voltage +: 15V
- Output Voltage -: 15V
- Output Voltage Max: 15V
- Output Voltage Min: 15V
- Power Rating: 20W
- Supply Voltage: 12V
- Weight: 77g
