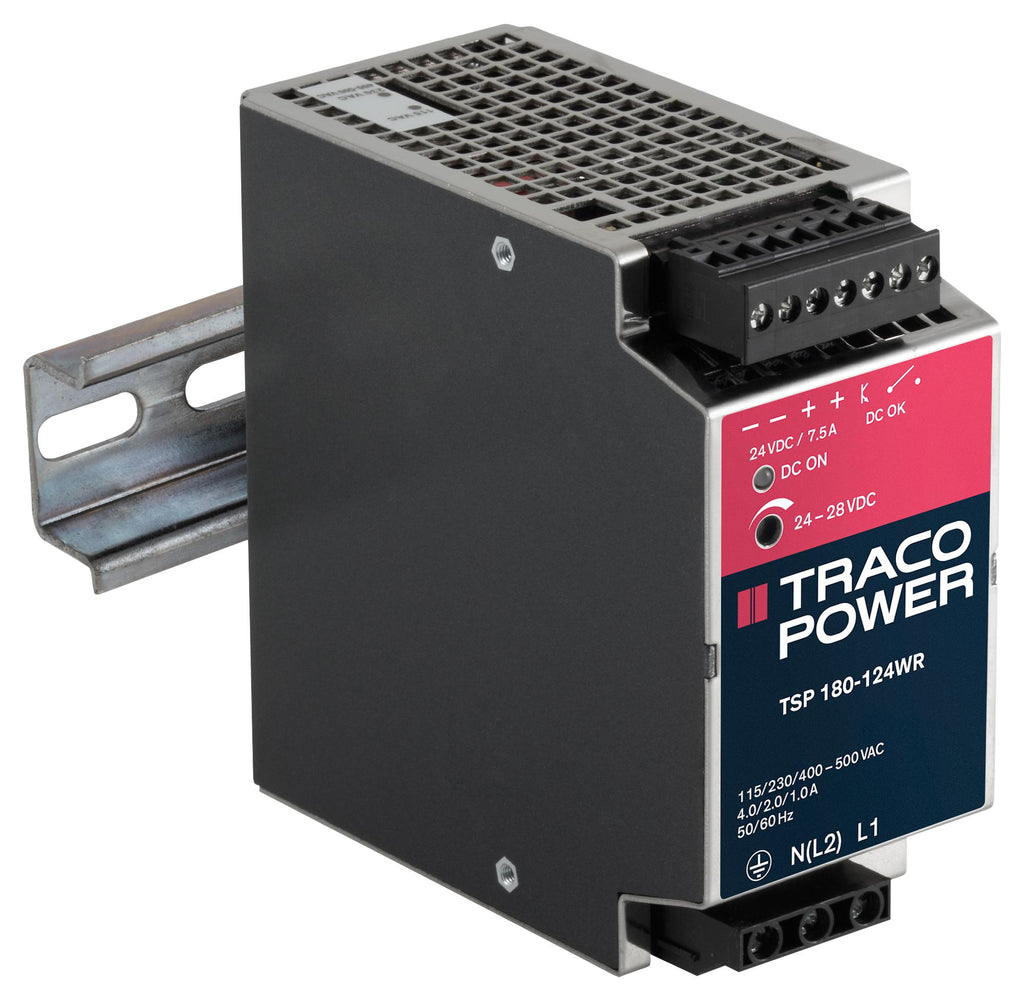

TRACO POWER - TSP 180-124WR - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 180 W, 24 VDC, 7.5 A
- No. of Outputs: 1 Output
- Output Power Max: 180W
- Output Voltage - Output 1: 24VDC
- Output Current - Output 1: 7.5A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 550V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Applications: Industrial
- Approval Bodies: CB, CSA, EN, IEC, UL
- Efficiency: 88%
- External Depth: 110mm
- External Length / Height: 110mm
- External Width: 54mm
- Height: 110mm
- IP Rating: IP20
- Input Frequency: 63Hz
- Input Voltage AC Max: 550VAC
- Input Voltage AC Min: 85VAC
- Length: 110mm
- Line Regulation: 0.5%
- Load Regulation: 0.5%
- No. of Outputs: 1Outputs
- Operating Temperature Max: +70°C
- Operating Temperature Min: -25°C
- Output Current: 7.5A
- Output Ripple Voltage pk-pk: 100mV
- Output Voltage: 24V
- Output Voltage Max: 28VDC
- Output Voltage Min: 24VDC
- Power Rating: 180W
- Weight: 700g
